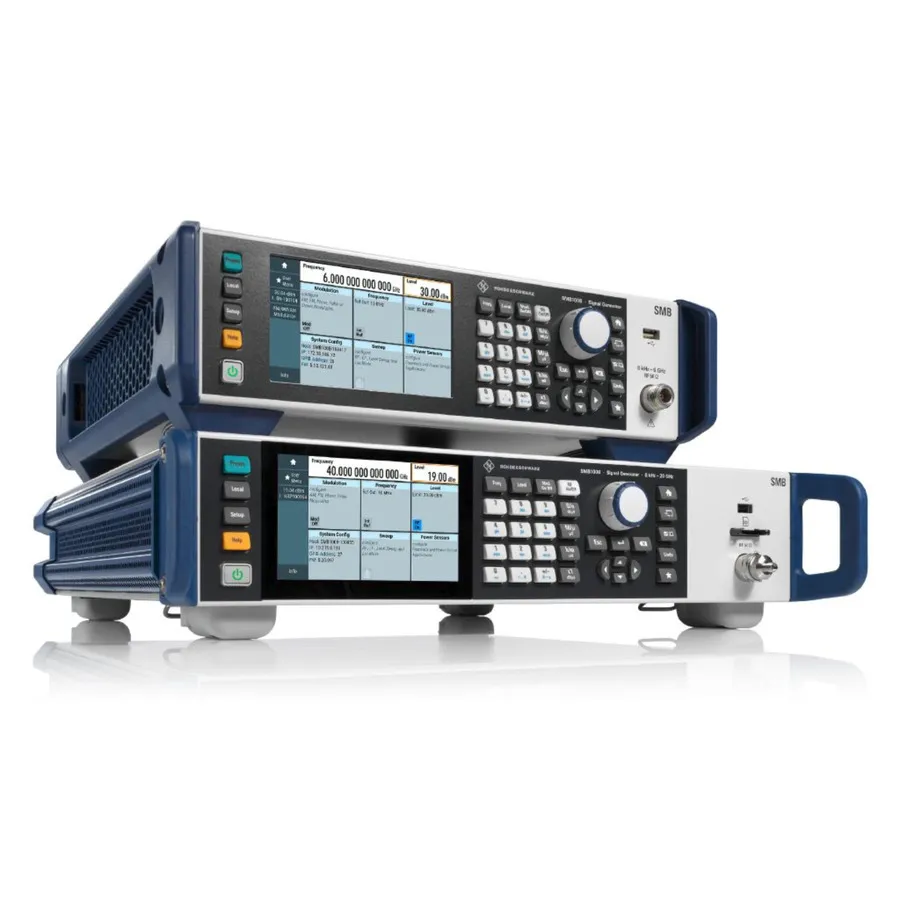

Rohde & Schwarz SMB100B RF Signal Generator

Overview

The Rohde & Schwarz SMB100B is a compact RF signal generator combining exceptional spectral purity with ultra-high output power. Designed for demanding RF and microwave testing applications, it provides a frequency range of 8 kHz to 6 GHz and is well-suited for communication system development, RF component testing, and applications requiring both low noise and high power output.

Key Features

• Frequency range from 8 kHz to 1 GHz, 3 GHz, or 6 GHz (selectable by model option)
• Outstanding SSB phase noise less than –134 dBc (measured) at 1 GHz with 20 kHz offset
• Very low wideband noise less than –153 dBc (typical) from 15 MHz to 6 GHz with 30 MHz offset
• Ultra-high output power of 34 dBm (measured) at 1 GHz
• Compact 2-unit form factor with 3/4 width 19-inch chassis design

Applications

• RF component and system testing
• Communication system development and validation
• High-power signal generation for testing applications
• Receiver sensitivity and noise figure characterization
