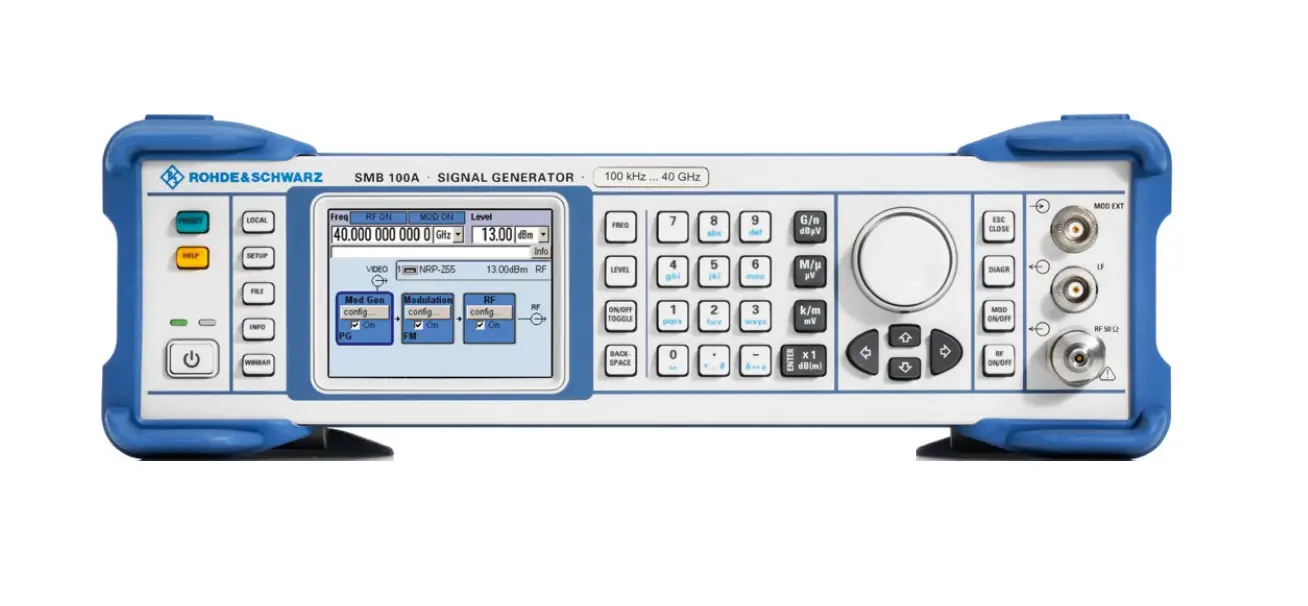

Rohde & Schwarz SMB100A RF Microwave Signal Generator
Request a quote
Rohde & Schwarz SMB100A microwave signal generator with frequency range up to 40 GHz, outstanding spectral purity with phase noise below –128 dBc, and high output power.
Product details
| Model | SMB100A (1406.6000.03) |
| Manufacturer | Rohde & Schwarz |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz SMB100A is a compact microwave signal generator delivering outstanding spectral purity and high output power for demanding RF and microwave testing. With frequencies spanning 9 kHz to 40 GHz, it serves applications in communications, aerospace, and defense industries requiring precise signal generation and low-noise performance.
Key Features
- Wide frequency range from 9 kHz to 12 GHz or from 100 kHz to 40 GHz depending on model option
- Excellent SSB phase noise typ. –128 dBc (at 1 GHz, 20 kHz offset)
- High output power typ. up to +27 dBm
- Support for AM, FM/phase modulation, and pulse modulation
- Compact 2-unit form factor with low weight
Applications
- RF and microwave component testing
- Communication system development and validation
- Signal integrity analysis and characterization
- Spectrum analyzer and receiver calibration
Specifications
| Frequency Range | 9 kHz to 40 GHz (model dependent) |
| Output Power | Typical up to +27 dBm |
| SSB Phase Noise | typ. –128 dBc (at 1 GHz, 20 kHz offset) |
| Modulation Modes | AM, FM/Phase Modulation, Pulse Modulation |
| Form Factor | 2 height units, compact size |
