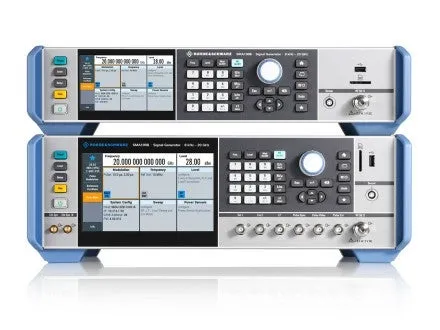

Rohde & Schwarz SMA100B RF Signal Generator

Overview

The Rohde & Schwarz SMA100B is a premium RF signal generator designed for applications requiring extremely clean analog signals with exceptionally low phase noise. It excels in low close-in SSB phase noise for radar LO substitution, low jitter and high SFDR for ADC testing, and ultra-high output power without compromising harmonic purity. Covering frequencies from 8 kHz to 67 GHz (with overrange to 72 GHz), the SMA100B sets new standards for high-end analog signal generators.

Key Features

• Frequency range: 8 kHz to 3 GHz, 6 GHz, 12.75 GHz, 20 GHz, 31.8 GHz, 40 GHz, 50 GHz, or 67 GHz (selectable options; overrange up to 72 GHz)
• Excellent SSB phase noise: –152 dBc typ. at 1 GHz, –132 dBc typ. at 10 GHz (each at 10 kHz offset)
• Virtually no wideband noise: –162 dBc (measured) at 10 GHz and 30 MHz offset
• Maximum output power exceeds 30 dBm across wide frequency ranges
• Exceptionally low harmonics and spurious content
• Independent output for pure clock signals (up to 1.5 GHz with option)
• State-of-the-art GUI with touch display (5" or 7" options)

Applications

• Radar and defense applications requiring clean LO signals
• ADC and mixed-signal IC testing with lowest jitter and SFDR
• High-speed data converter characterization
• Component and module testing in aerospace and defense
• RF and wireless communications component development
• Production testing requiring ultra-pure signals without additional amplifiers
• Research and development in semiconductor testing
