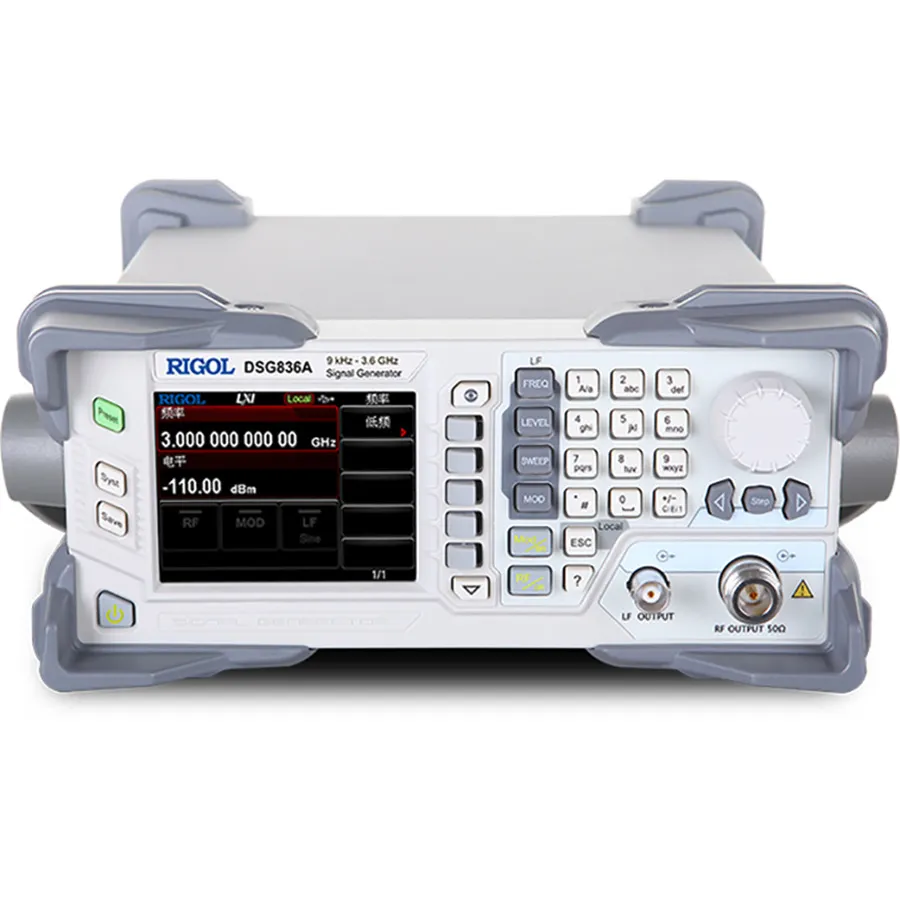

RIGOL DSG836A-OCXO RF Signal Generator
Request a quote
RIGOL DSG836A-OCXO features OCXO timebase for superior frequency stability, 9 kHz to 3.6 GHz coverage with IQ modulation, and up to +20 dBm output power.
Product details
| Model | DSG836A-OCXO |
| Manufacturer | RIGOL |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The RIGOL DSG836A-OCXO is an advanced RF signal generator in the DSG800A series, featuring an oven-controlled crystal oscillator (OCXO) for exceptional frequency stability. Covering 9 kHz to 3.6 GHz with IQ modulation capabilities, it delivers output power up to +20 dBm and phase noise of -112 dBc/Hz. The OCXO timebase provides superior stability compared to standard models, making it ideal for precision testing and demanding RF applications.
Key Features
- OCXO (Oven-Controlled Crystal Oscillator) timebase for superior frequency stability
- Frequency range from 9 kHz to 3.6 GHz with 0.01 Hz resolution
- Internal and external IQ modulation supporting FSK, QAM, and QPSK signals
- Maximum output power up to +20 dBm
- Phase noise of -112 dBc/Hz (typical)
- Amplitude accuracy of ±0.5 dB
- AM/FM/Phase analog modulation functions
- Flexible frequency and amplitude sweep functions
- Pulse modulation and vector modulation capabilities
- System flatness calibration function
Applications
- Precision RF receiver testing
- Communication system design and debugging
- IoT and wireless device testing
- Laboratory RF signal generation
Specifications
| Maximum Frequency | 3.6 GHz |
| Frequency Range | 0.5 - 4.0 |
| Series | DSG800A Series |
