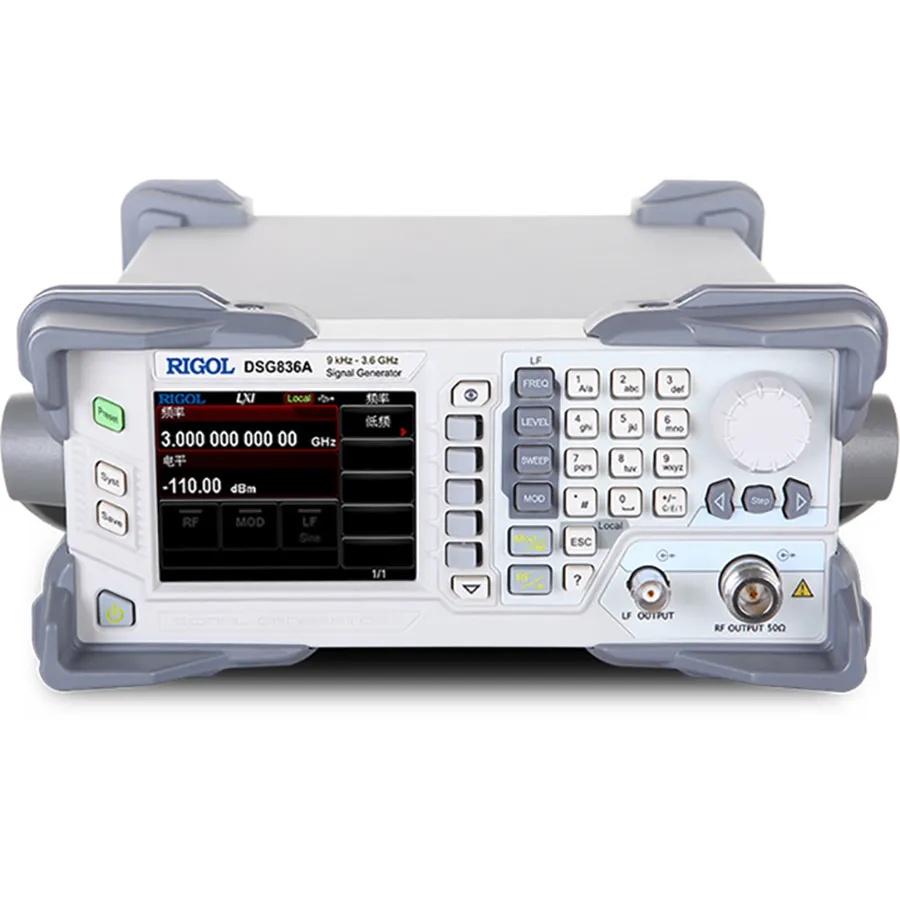

RIGOL DSG836-OCXO RF Signal Generator
Request a quote
RIGOL DSG836-OCXO RF signal generator with 9 kHz to 3 GHz range, -105 dBc/Hz phase noise, +20 dBm output, and OCXO timebase for enhanced frequency stability.
Product details
| Model | DSG836-OCXO |
| Manufacturer | RIGOL |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The RIGOL DSG836-OCXO is a premium RF signal generator combining the full capabilities of the DSG836 with an oven-controlled crystal oscillator (OCXO) timebase. The integrated OCXO option delivers exceptional frequency stability and repeatability, making it ideal for applications demanding superior reference accuracy and long-term coherence.
Key Features
- OCXO high-stability clock with industry-leading phase noise performance
- 9 kHz to 3 GHz frequency coverage with 0.01 Hz resolution
- Up to +20 dBm maximum output power
- Excellent phase noise of -105 dBc/Hz typical
- Superior amplitude accuracy of ±0.5 dB
- Internal and external IQ modulation (FSK, QAM, QPSK)
- Complete AM/FM/Phase analog modulation functions
- Advanced pulse modulation and pulse train capabilities
- Flexible frequency and amplitude sweep functions
- System flatness calibration function
- Compact size with excellent portability
- Simple and intuitive operation
Applications
- High-precision frequency reference applications
- Satellite and cellular communication testing
- RF receiver sensitivity and selectivity measurements
- Research and development for defense and aerospace
- Advanced laboratory testing and calibration
- Production testing with stringent frequency accuracy requirements
Specifications
| Maximum Frequency | 3.6 GHz |
| Frequency Range | 0.5 - 4.0 |
| Series | DSG800 Series |
