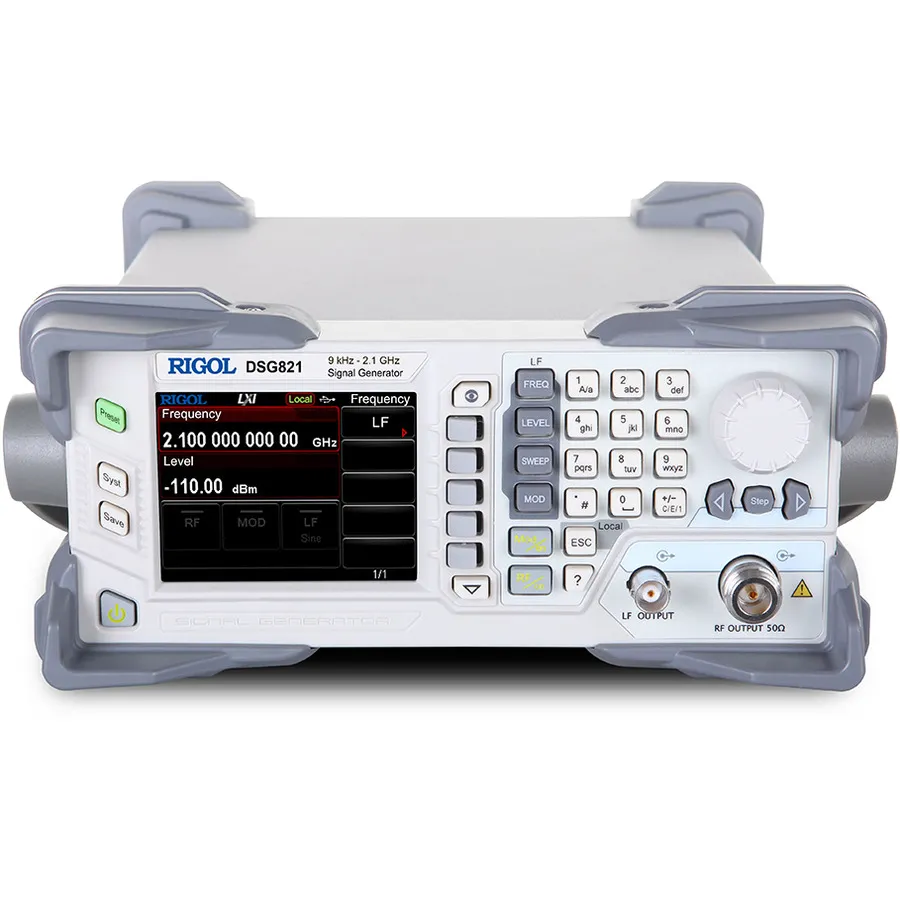

RIGOL DSG821-OCXO RF Signal Generator
Request a quote
RIGOL DSG821-OCXO RF signal generator with OCXO timebase covers 9 kHz to 2.1 GHz, +20 dBm output, -105 dBc/Hz phase noise, and AM/FM/PM modulation.
Product details
| Model | DSG821-OCXO |
| Manufacturer | RIGOL |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The RIGOL DSG821-OCXO is a professional-grade RF signal generator in the DSG800 series equipped with an oven-controlled crystal oscillator (OCXO) for exceptional frequency stability. Covering 9 kHz to 2.1 GHz, this instrument combines compact design with superior performance suitable for demanding applications in research, development, and industrial settings.
Key Features
- Frequency range: 9 kHz to 2.1 GHz
- Integrated OCXO timebase: <5 ppb temperature stability, <30 ppb/year aging
- Low phase noise: up to -105 dBc/Hz (typical)
- Maximum output power: +20 dBm (typical)
- Amplitude accuracy: 0.5 dB (typical)
- Frequency resolution: 0.01 Hz
- Complete AM/FM/PM analog modulation
- Flexible frequency and amplitude sweep functions
- Pulse modulation capabilities
- Vector modulation function
- System flatness calibration
Applications
- Precision frequency reference and signal generation
- Research and development with demanding stability requirements
- Industrial RF testing and measurement
- Educational laboratory applications
Specifications
| Maximum Frequency | 2.1 GHz |
| Frequency Range | 0.5 - 4.0 |
| Series | DSG800 Series |
