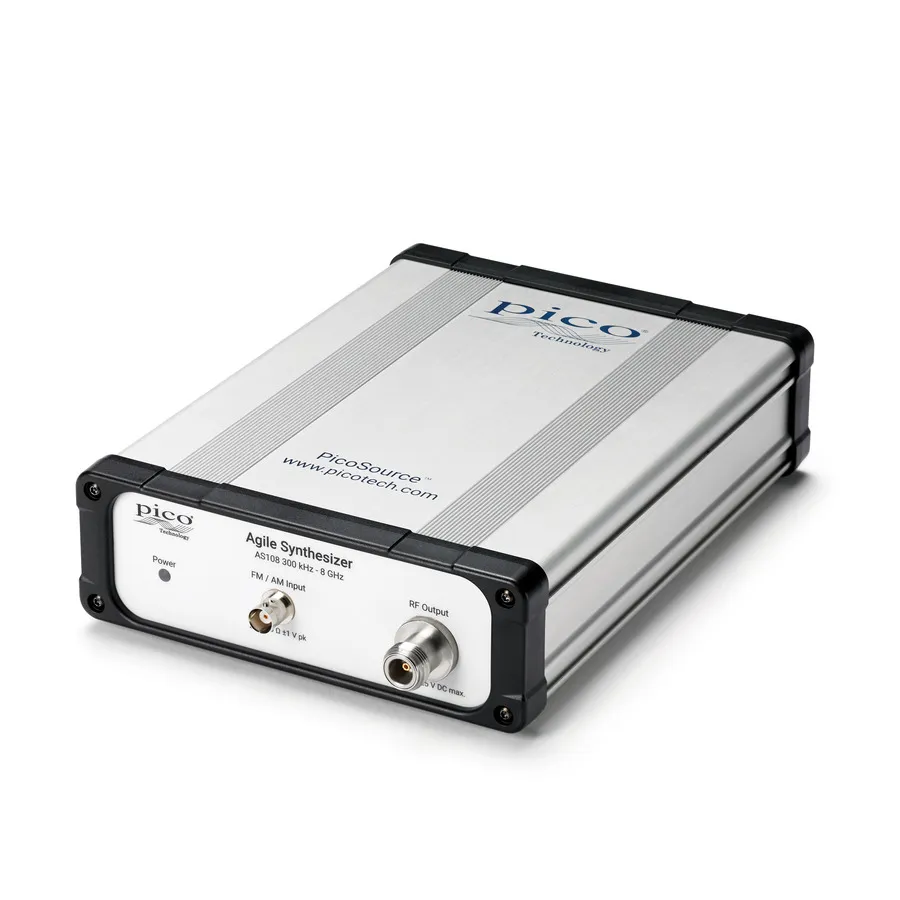

Pico Technology AS108 Agile Synthesizer

Overview

The Pico Technology AS108 is a professional-grade, portable RF signal synthesizer delivering agile signal generation from 300 kHz to 8 GHz. Powered by compact 12 to 15 V DC, the AS108 combines benchtop performance with field portability, making it ideal for developers, scientists, engineers, and service technicians. As a full-function USB-controlled vector (IQ) modulating signal synthesizer, it provides both static and parameter-agile signal capabilities suited to a wide range of RF and microwave applications.

Key Features

• Frequency range: 300 kHz to 8 GHz
• Dynamic range: −15 dBm to +15 dBm
• Fast frequency settling: 55 microseconds to 10 ppm accuracy
• Fast amplitude settling: less than 25 microseconds to 1 dB, less than 200 microseconds to 0.1 dB
• Phase noise: −100 dBc/Hz typical at 1 GHz with 10 kHz offset
• Modulation: FM, PM, and AM modulation with internal sine or external input
• Sweep, hop, and list modes for frequency, level, and phase
• Configurable stand-alone operation mode
• External reference clock I/O and trigger I/O for system integration
• Compact, portable design with 12 to 15 V DC power requirement
• USB control with intuitive Windows software interface
• Multi-synthesizer control: multiple units controllable from single PC or via API

Included Accessories

• PicoSource AS108 8 GHz Agile Synthesizer unit
• Quick start guide
• Inter-series adaptor: 18 GHz, 50 Ω SMA(f)–N(m)
• PicoWrench RF combination wrench
• 12 V power supply with universal input
• USB cable, 1.8 m
• Carry case

Applications

• Benchtop and integrated module RF signal generation
• Automated test systems and parameter-agile signal stimulus
• Field service and installation technician tools
• Research and development RF testing
• Unmanned and remote signal source installations
• Educational demonstrations and student laboratory work
