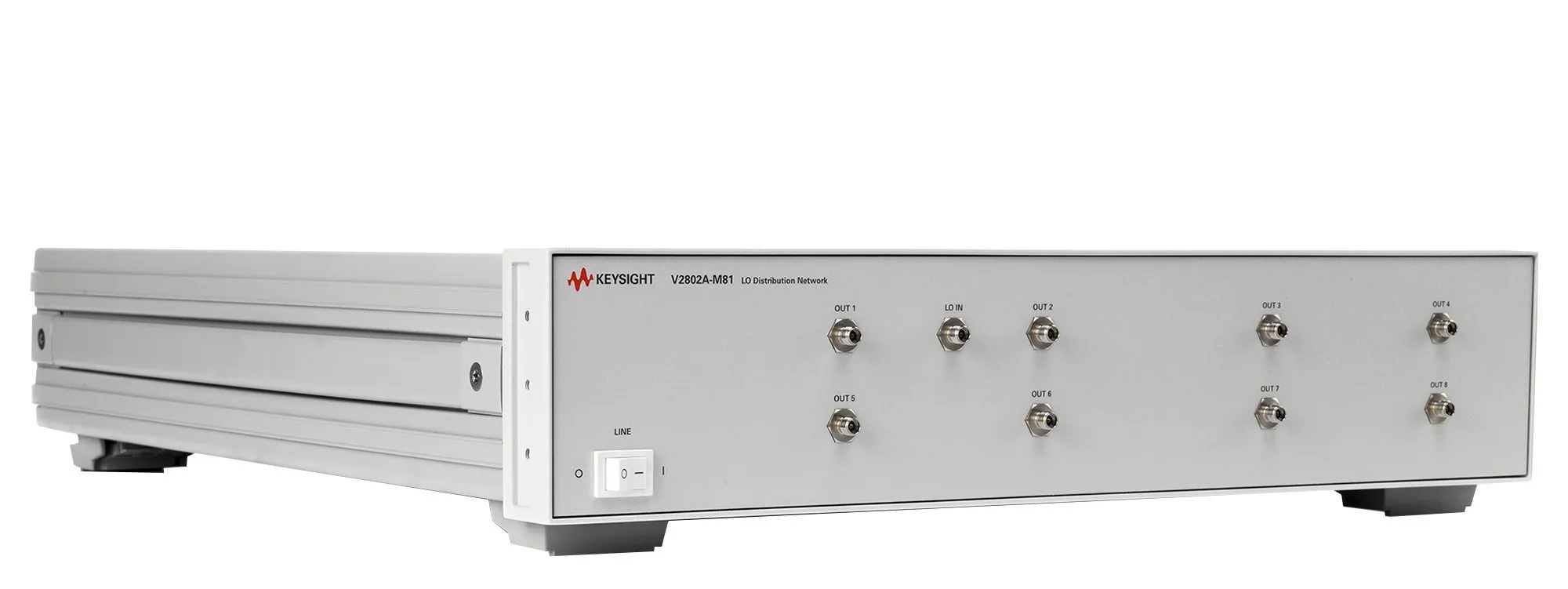

Keysight V2802A LO Distribution Network
Request a quote
The Keysight V2802A is an LO distribution network enabling phase-coherent multi-channel signal generation from 400 MHz to 6 GHz for up to 8 generators or analyzers.
Product details
| Model | V2802A |
| Manufacturer | Keysight |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Keysight V2802A Option M81 is an LO (Local Oscillator) distribution network that extends phase-coherent signal generation beyond four channels. When used with the Keysight M9381A PXIe vector signal generator and M9391A PXIe vector signal analyzer, it enables phase coherency for five to eight generators or analyzers by distributing a single local oscillator to all channels.
Key Features
- One LO input with eight outputs (OUT 1-8)
- Frequency range: 400 MHz to 6 GHz
- Eight-channel phase-coherent distribution
- Compatible with M9381A and M9391A (requires Option 012 for LO sharing)
- Enables expansion of M9301A synthesizer beyond four channels
Applications
- Multi-channel signal generation with phase coherency
- Extended PXIe vector signal generator configurations
- Phase-coherent signal analysis systems
Specifications
| Frequency Range | 400 MHz to 6 GHz |
| Number of Outputs | 8 |
| Number of Inputs | 1 |
| Application | Phase-coherent LO distribution |
