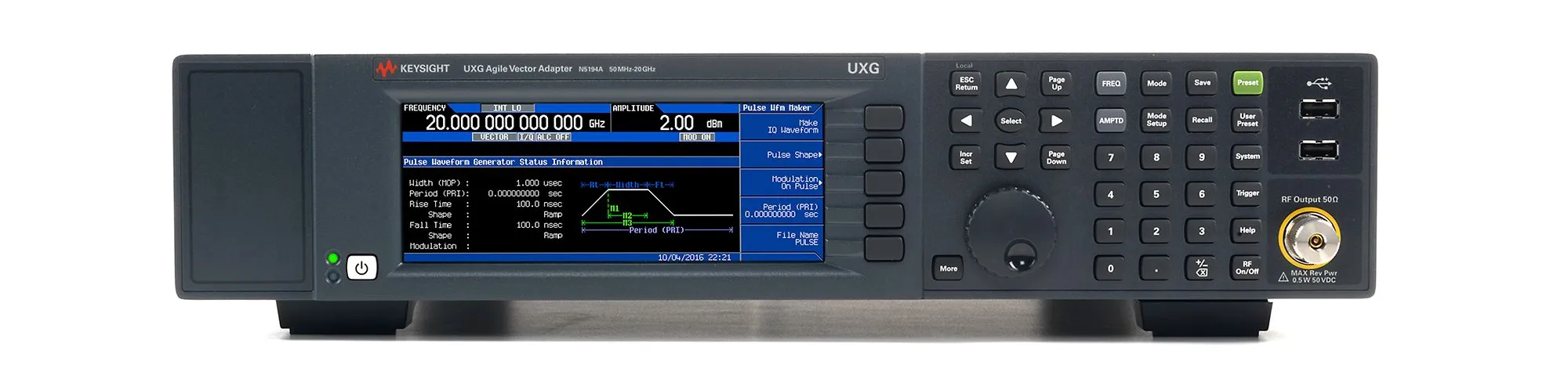

Keysight N5194A UXG Vector Adapter
Request a quote
Keysight N5194A is a UXG Vector Adapter add-on for the N5193A Agile Signal Generator, enabling advanced vector signal generation with 40 GHz capability and LVDS I/O interface support.
Product details
| Model | N5194A |
| Manufacturer | Keysight |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Keysight N5194A is a UXG Vector Adapter that functions as a signal generator add-on module for the N5193A Agile Signal Generator. This vector adapter extends the capabilities of the Agile signal generator to support advanced vector signal generation applications in RF and microwave testing.
Key Features
- UXG Vector Adapter add-on for N5193A Agile Signal Generator
- 40 GHz model (option 540) operates with 20 GHz N5193A for full frequency coverage
- CC1 LVDS I/O interface for high-speed data connectivity
- Compatible with enhanced phase noise (EP1) and fine frequency resolution (FR1) options
- Requires SS2/SS4 switching speed and CC1 LVDS I/O interface for operation
- Uses 6 GHz reference and LO signals from host signal generator
Applications
- Vector signal generation for RF and microwave device testing
- Advanced modulation format characterization
- Component and system validation
- Research and development of RF systems
Specifications
| Type | UXG Vector Adapter |
| Compatible Signal Generator | N5193A Agile Signal Generator |
| Maximum Frequency | 40 GHz (option 540) |
| I/O Interface | CC1 LVDS |
| Required Switching Speed Options | SS2/SS4 |
