Keysight N5193AU-CC4 Agile Signal Generator
Request a quote
Keysight N5193AU-CC4 UXG agile signal generator with CC4 Ethernet interface enables high-speed streaming for multi-emitter radar and EW threat simulation to 44 GHz.
Product details
| Model | N5193AU-CC4 |
| Manufacturer | Keysight |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview

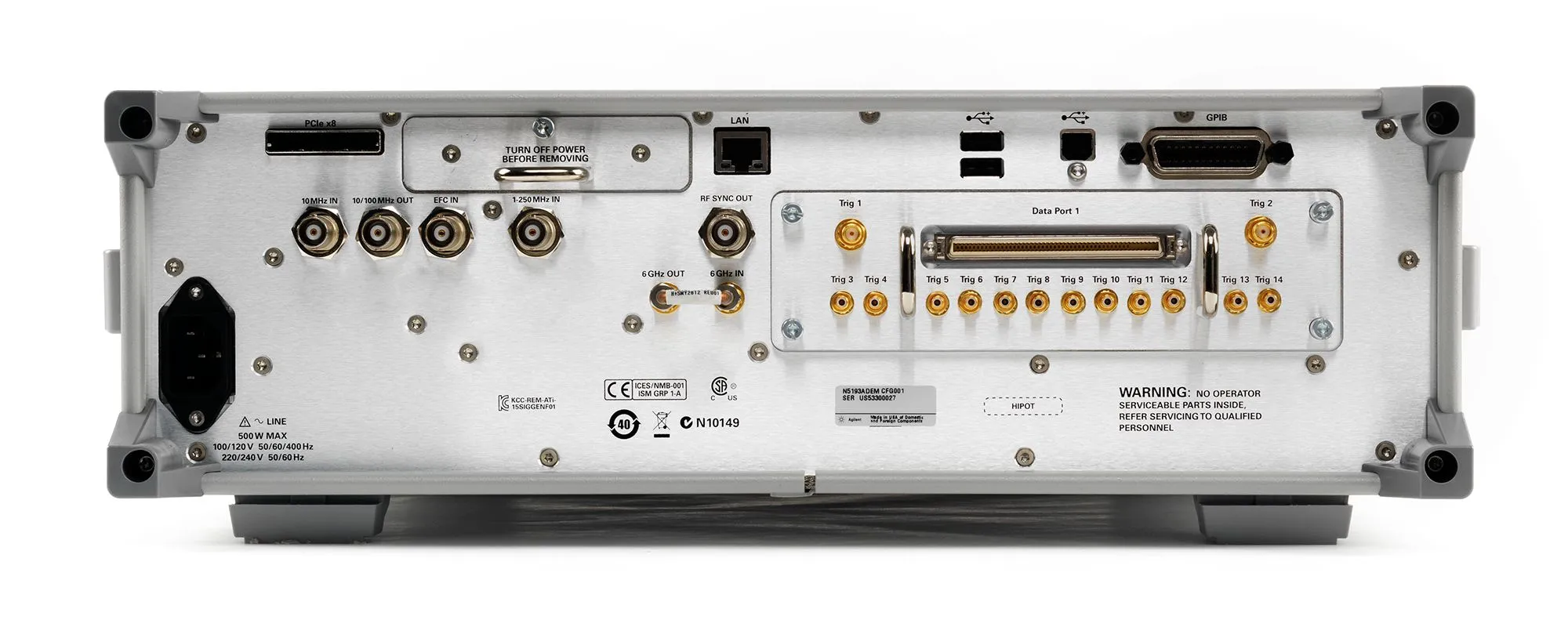

The Keysight N5193AU-CC4 is an UXG X-Series agile signal generator configured with the CC4 Ethernet I/O interface, featuring dual SFP+ transceivers for high-speed data streaming. The CC4 option provides enhanced connectivity for real-time pulse descriptor word (PDW) streaming and integration with external threat simulation systems, ideal for complex radar and electronic warfare test scenarios.
Key Features
- Direct digital synthesis (DDS) technology with frequency, amplitude, and phase control in 170 ns intervals
- Full frequency range from 10 MHz to 44 GHz with wide coverage for EW and radar applications
- CC4 I/O interface with 2 SFP+ Ethernet transceivers for high-speed streaming
- 2 SMA bidirectional and 12 SMB trigger/marker ports (7 bidirectional plus 5 output-only)
- Keysight Data Streaming Protocol (KDSP) for efficient real-time signal control
- Generates shaped pulses and wideband linear or non-linear chirps
- Phase repeatability and coherency for multi-emitter simulations
Applications
- Streaming-based radar threat simulation with real-time PDW control
- Multi-emitter scenarios with thousands of emitters and millions of pulses per second
- Electronic warfare system testing with complex signal environments
- High-density pulse simulations with coordinated frequency, phase, and amplitude control
- Antenna characterization across extended frequency ranges
Specifications
| Creating Multi-Emitter Scenarios for Radar and Electronic Warfare Testing | Realistic testing of radar and electronic warfare systems depends on the generation of signals that accurately simulate multi-emitter environments consisting of thousands of emitters and millions of pulses per second, all arriving from multiple directions. Traditionally, this has required the use of large, complex systems not readily available to R&D engineers. New technology built into commercial, off-the-shelf (COTS) “agile signal generators” provides an integrated, lower-cost solution that fits on an engineer’s test bench. This technology also enables developers to generate increasingly complex simulations that get closer to reality and, ultimately, provide deeper confidence in EW system performance. |
| Pathwave Signal Generation Software | Create Performance-Optimized Reference Signals – Create calibrated signals, validated by Keysight, that conform to industry standards to help enhance the characterization and verification of your devices Validate Component, Transmitter, and Receiver Testing – Easily create and playback customized waveforms for component testing with virtually distortion–free test signals Ensure Designs Meet Latest Standards – Trust that the signals you generate are current with the latest emerging technologies Speed Signal Creation and Reduce Simulation Time – Accelerate your testing with graphical tree–style navigation |
| UXG Agile Signal Generator | UXG Agile Vector Adapter |
| Data Port | 2 SFP+ transceivers |
| Triggers and Markers | 2 SMA(f) bidirectional and 12 SMB(m) (7 bidirectional plus 5 duplicate output-only ports |
| Data Format | Keysight data streaming protocal (KDSP) |
| Controllable Parameters | Frequency Amplitude Phase Phase coding Band Pulse Chirp FM deviation ФM deviation Depending on installed options |
| Option | Description |
| CC4 | Option CC4 replaced the previous option CC3 10 GB Ethernet I/O card. Option CC4 is a form/fit/functional replacement for CC3 and offers additional triggering ports. |
