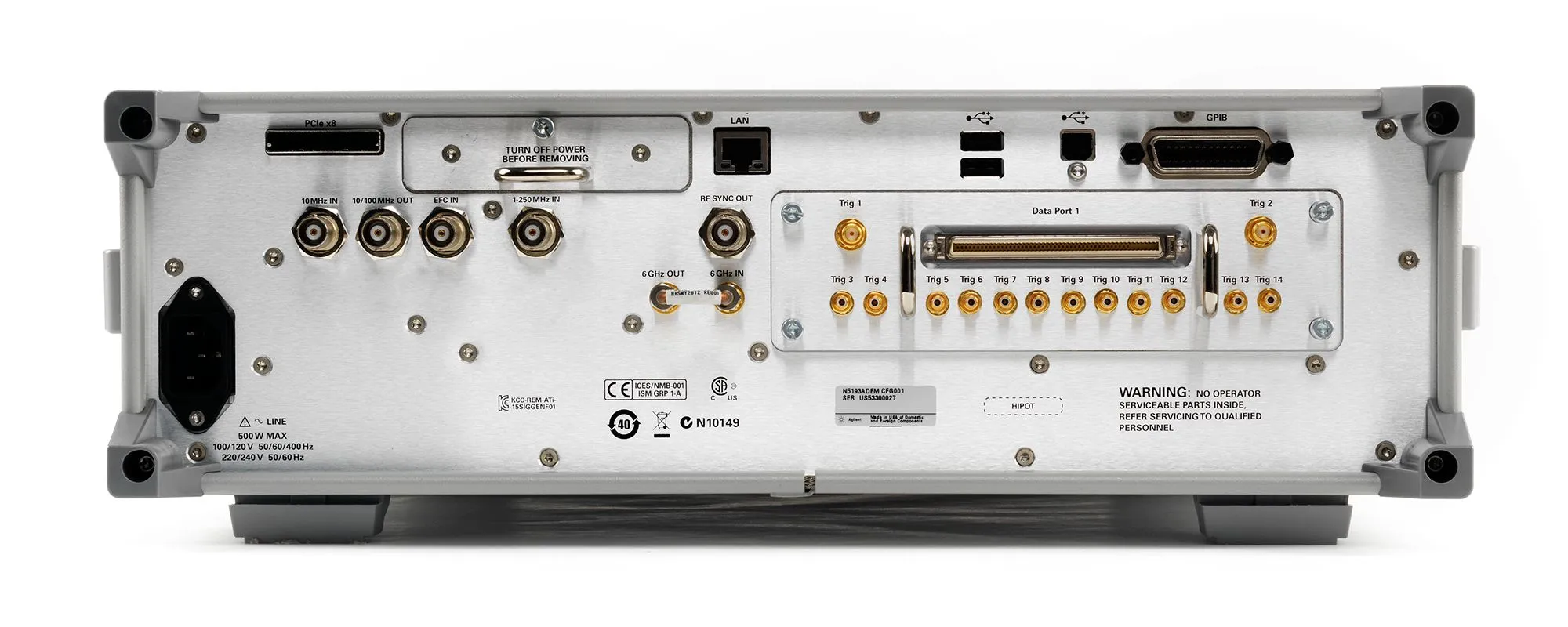

Keysight N5193A-CC1 Agile Signal Generator
Request a quote
Keysight N5193A-CC1 UXG agile signal generator with CC1 I/O interface supports fast frequency switching to 44 GHz for radar, EW, and antenna testing.
Product details
| Model | N5193A-CC1 |
| Manufacturer | Keysight |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Keysight N5193A-CC1 is an UXG X-Series agile signal generator configured with the CC1 I/O interface for rapid signal generation and threat simulation. The CC1 interface features a 100-pin LVDS data port supporting binary data format, making it ideal for integrating complex pulse descriptor word (PDW) sequences and real-time signal control in radar and electronic warfare testing systems.
Key Features
- Direct digital synthesis (DDS) technology with frequency, amplitude, and phase updates in 170 ns intervals
- Coverage from 10 MHz to 44 GHz for wide range of EW, radar, and antenna test requirements
- CC1 I/O interface with 100-pin LVDS data port and binary data format
- 2 SMA and 12 SMB trigger and marker connectors for system integration
- Generates narrow pulses with 90 dB on/off ratio and linear/non-linear chirps
- Phase repeatability and coherency across frequency hops
- Pulse descriptor word (PDW) support for complex pulse train generation
Applications
- Multi-emitter radar threat simulation with phase coherent frequency hopping
- Electronic warfare test and validation systems
- Wide-area antenna characterization and measurement
- Complex signal environment simulation for defense testing
Specifications
| Creating Multi-Emitter Scenarios for Radar and Electronic Warfare Testing | Realistic testing of radar and electronic warfare systems depends on the generation of signals that accurately simulate multi-emitter environments consisting of thousands of emitters and millions of pulses per second, all arriving from multiple directions. Traditionally, this has required the use of large, complex systems not readily available to R&D engineers. New technology built into commercial, off-the-shelf (COTS) “agile signal generators” provides an integrated, lower-cost solution that fits on an engineer’s test bench. This technology also enables developers to generate increasingly complex simulations that get closer to reality and, ultimately, provide deeper confidence in EW system performance. |
| Pathwave Signal Generation Software | Create Performance-Optimized Reference Signals – Create calibrated signals, validated by Keysight, that conform to industry standards to help enhance the characterization and verification of your devices Validate Component, Transmitter, and Receiver Testing – Easily create and playback customized waveforms for component testing with virtually distortion–free test signals Ensure Designs Meet Latest Standards – Trust that the signals you generate are current with the latest emerging technologies Speed Signal Creation and Reduce Simulation Time – Accelerate your testing with graphical tree–style navigation |
| UXG Agile Signal Generator | UXG Agile Vector Adapter |
| Data Port | 100 pin LVDS |
| Triggers and Markers | 2 SMA(f) and 12 SMB(m) |
| Data Format | Binary |
| Controllable Parameters | Frequency Amplitude Phase Phase coding Band Pulse Chirp FM deviation ФM deviation Depending on installed options |
