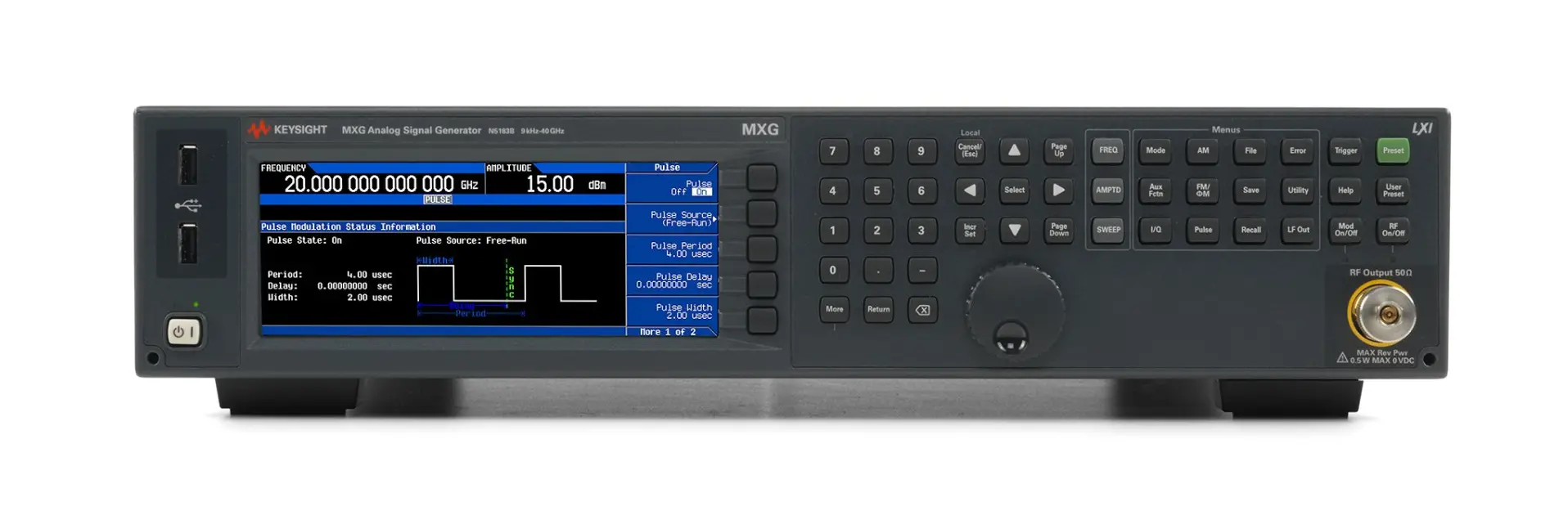

Keysight N5183B Microwave Analog Signal Generator
Request a quote
Keysight N5183B is a microwave analog signal generator with 9 kHz to 40 GHz frequency coverage, -124 dBc/Hz phase noise, and compact 2U form factor.
Product details
| Model | N5183B |
| Manufacturer | Keysight |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Keysight N5183B is a microwave analog signal generator in the MXG X-Series that delivers 9 kHz to 40 GHz frequency coverage with near PSG performance levels in a compact, 2-unit rack-mount design. It combines spectral purity, output power, and switching speed for module- and system-level testing applications.
Key Features
- Frequency coverage: 9 kHz to 40 GHz (with Option 540)
- Output power: +20 dBm at 20 GHz, +23 dBm at 1 GHz
- Phase noise: -124 dBc/Hz at 10 GHz and 10 kHz offset, -130 dBc/Hz at 1 GHz and 20 kHz offset
- Fast switching speed: ≤600 µs
- Non-harmonic spurious: -75 dBc at 10 GHz and >10 kHz offset
- Modulation: AM, FM, PM, and pulse train generation
- Interfaces: LAN, LXI, USB 2.0, GPIB with SCPI and IVI-COM drivers
- Frequency resolution: 0.001 Hz
Applications
- Radar receiver sensitivity testing with best-in-class phase noise
- Module and system-level RF testing
- High-power amplifier characterization and validation
- Remote DUT stimulation and multifunction generation
Specifications
| Form Factor | Benchtop |
