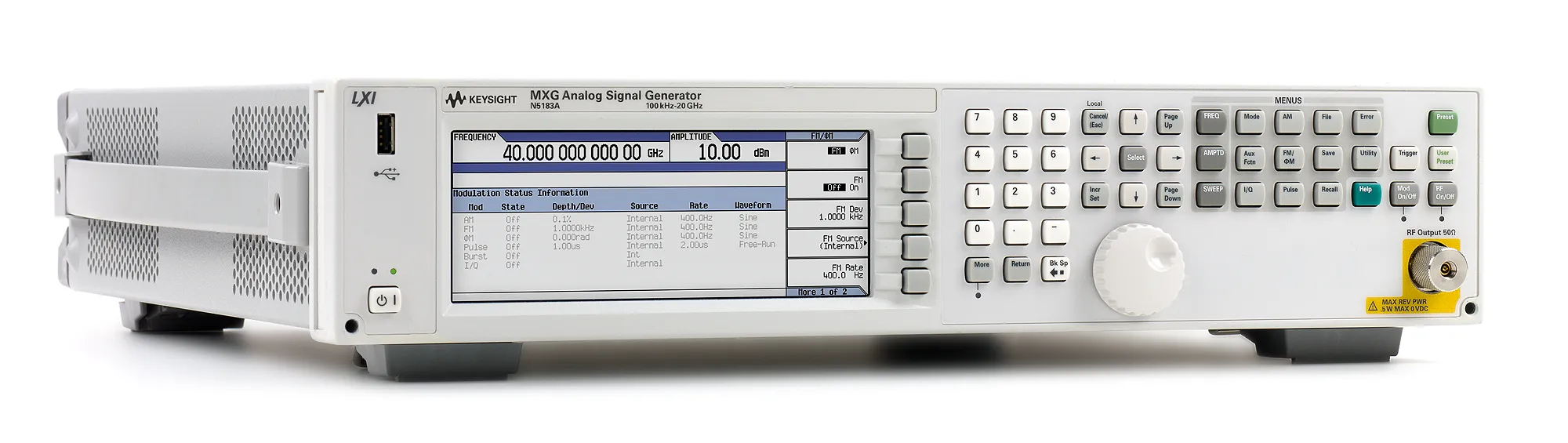

Keysight N5183A MXG Microwave Signal Generator
Request a quote
Keysight N5183A is a precision microwave signal generator with fast switching, exceptional phase noise, and scalable RF performance up to 40 GHz.
Product details
| Model | N5183A |
| Manufacturer | Keysight |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Keysight N5183A MXG is a microwave signal generator optimized for accurate and repeatable reference signal generation in manufacturing environments. With scalable RF performance and fast frequency switching, it delivers excellent value while maximizing test throughput and minimizing rack space requirements.
Key Features
- Frequency range up to 40 GHz with 20, 32, and 40 GHz models available
- Mechanical attenuator option for extended dynamic range
- Fast frequency switching: <=5ms standard, <=1.15ms with Option UNZ
- Simultaneous frequency and amplitude switching at <=5ms (<=900µs with Option UNZ)
- 0.01 Hz frequency resolution
- Multiple modulation modes: AM, FM, PM, Pulse, and Pulse Train
- GPIB IEEE-488.2, USB 2.0, and 100Base-T LAN interfaces
Applications
- Reference signal generation for RF and microwave manufacturing
- Local oscillator upconversion for microwave systems
- CW and modulated signal testing
- Component characterization and filter testing
Specifications
| Form Factor | Benchtop |
