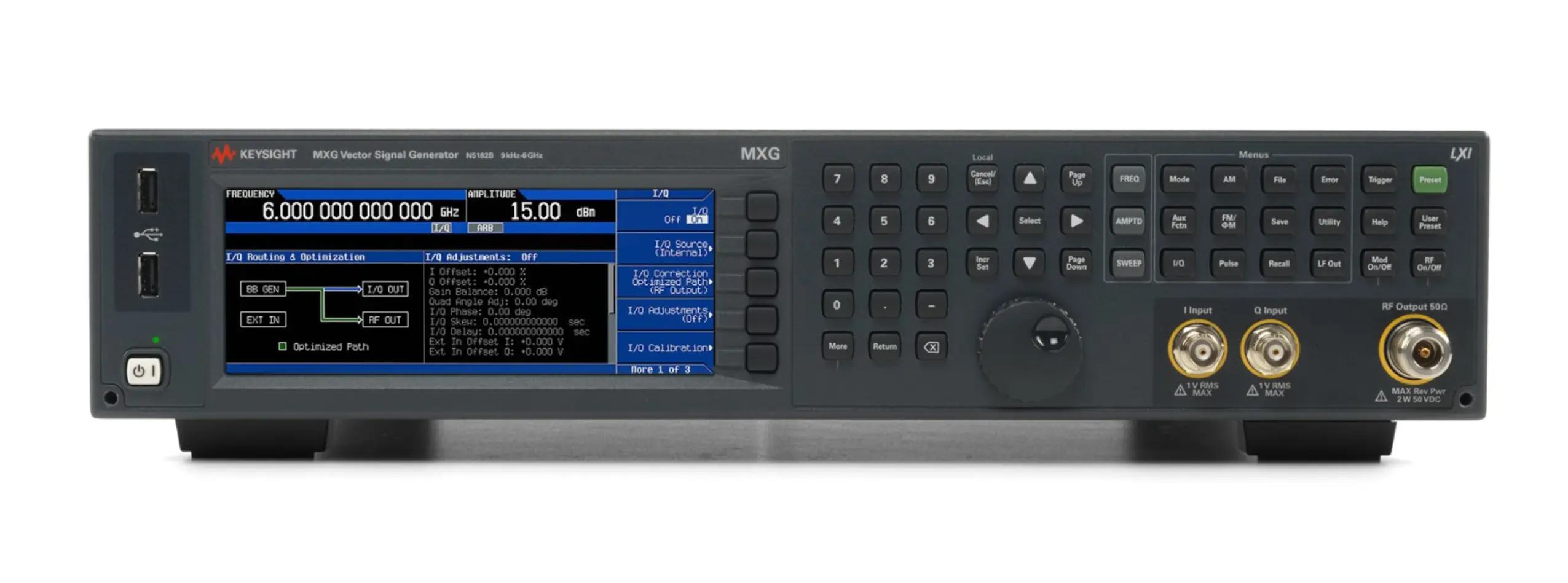

Keysight N5182B MXG X-Series RF Vector Signal Generator
Request a quote
Keysight N5182B MXG X-Series RF vector signal generator with 9 kHz to 6 GHz coverage, -146 dBc/Hz phase noise, and +27 dBm output power.
Product details
| Model | N5182B |
| Manufacturer | Keysight |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Keysight N5182B is an MXG X-Series RF vector signal generator designed for R&D applications requiring exceptional spectral purity, output power, and switching speed. With frequency coverage from 9 kHz to 6 GHz, the N5182B delivers the phase noise and spurious performance needed for radar receiver sensitivity testing, ADC and mixer characterization, and multi-technology signal simulation.
Key Features
- Frequency range: 9 kHz to 6 GHz
- Phase noise: -146 dBc/Hz at 1 GHz (20 kHz offset)
- Spurious performance: -96 dBc at 1 GHz (nonharmonics)
- Output power: +27 dBm at 1 GHz
- ACPR (vector): -73 dBc (W-CDMA 64 DPCH)
- EVM (vector): 0.4% (802.11ac/LTE)
- Frequency switching: ≤ 800 μs
- Waveform playback memory: 1024 MSa
- Multiple modulation and coding standards supported
Applications
- Radar receiver sensitivity testing
- ADC and mixer characterization
- Power amplifier linearity and ACPR testing
- 802.11ac WLAN component testing
- LTE and cellular signal simulation
- GNSS, DVB, and proprietary waveform testing
Specifications
| Form Factor | Benchtop |
