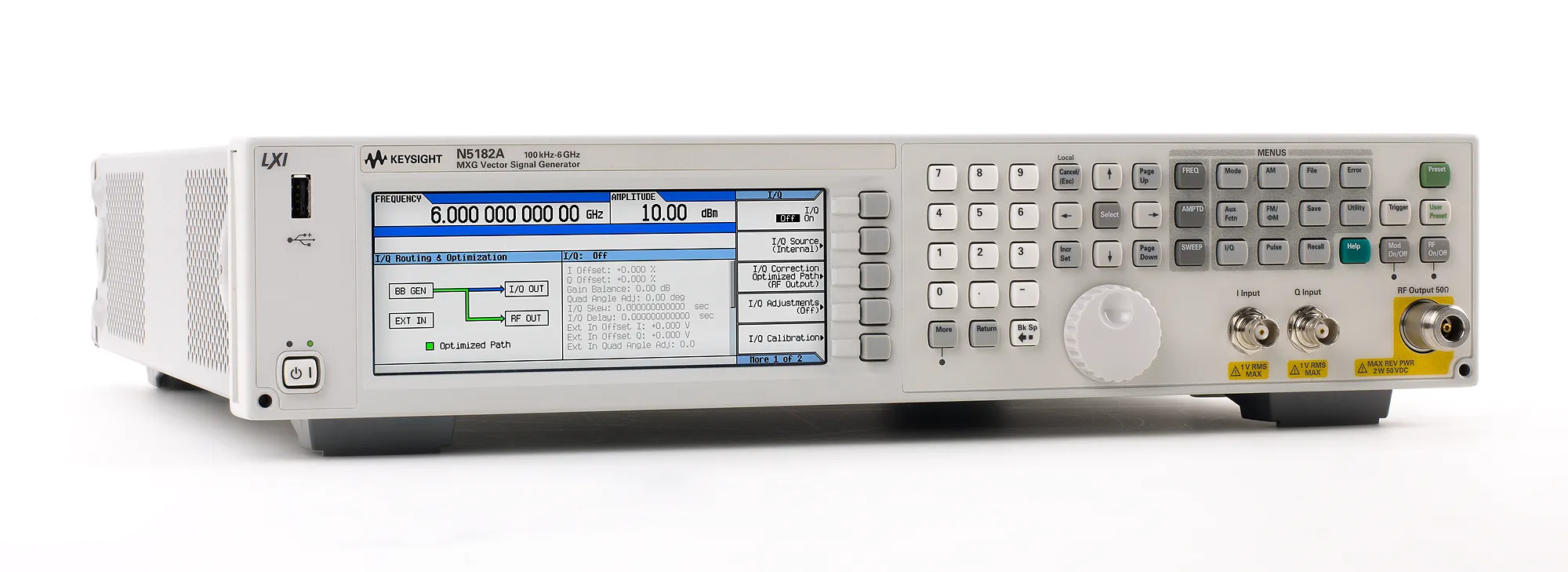

Keysight N5182A MXG Vector Signal Generator
Request a quote
Keysight N5182A MXG vector signal generator with 3 and 6 GHz models, 0.01 Hz frequency resolution, and switching speeds to 1.15 ms.
Product details
| Model | N5182A |
| Manufacturer | Keysight |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Keysight N5182A is an MXG vector signal generator optimized for manufacturing test of cellular communications and wireless connectivity components. Housed in a compact two-unit-height chassis, the N5182A combines scalable RF and baseband performance with fast switching, high output power, and electronic attenuation for high-throughput production environments.
Key Features
- Frequency coverage: 3 GHz or 6 GHz models
- Frequency resolution: 0.01 Hz
- Fast frequency switching: ≤ 1.5 ms in SCPI mode (≤ 1.15 ms with Option UNZ)
- Simultaneous frequency and amplitude switching: ≤ 5 ms in list mode (≤ 900 μs with Option UNZ)
- Output power: -110 dBm to +10 dBm at 3 GHz; -127 dBm to +10 dBm with Option 1EQ
- SSB phase noise: -121 dBc/Hz at 20 kHz offset from 1 GHz; -110 dBc/Hz from 3 GHz
- Interfaces: GPIB, LAN 100BaseT, USB 2.0
Applications
- Cellular communications component manufacturing test
- Wireless connectivity testing
- Signal generation and baseband modulation
Specifications
| Form Factor | Benchtop |
