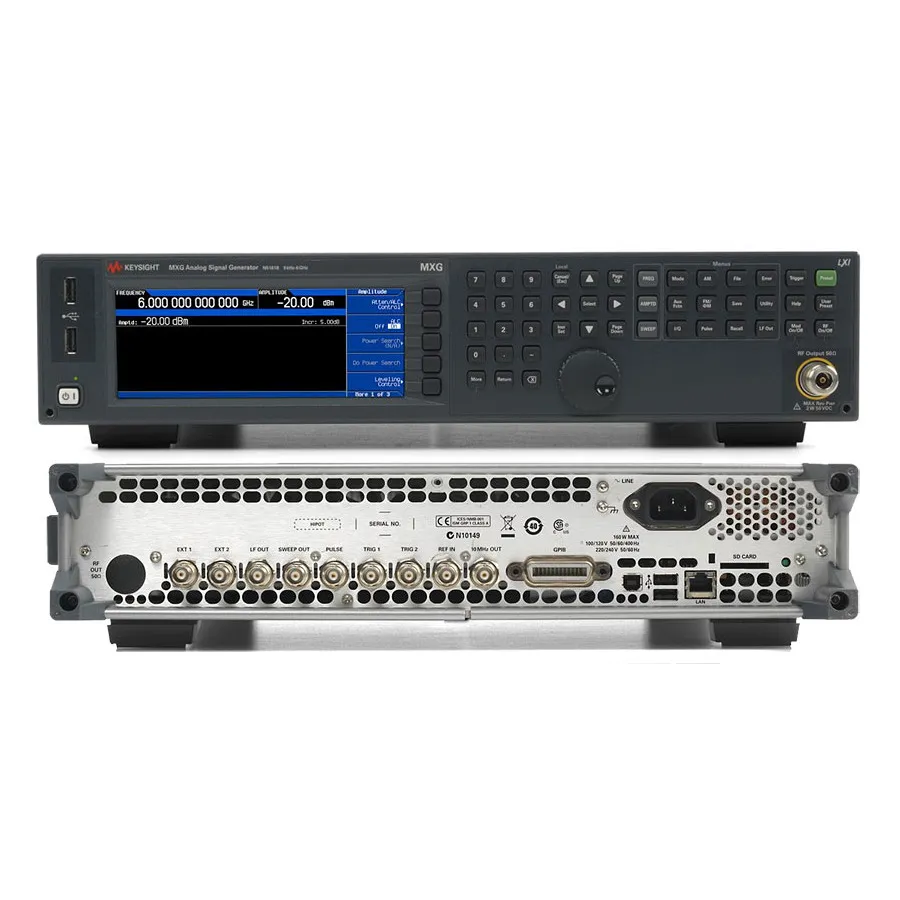

Keysight N5181B/503 MXG X-Series RF Analog Signal Generator
Request a quote
Keysight N5181B/503 MXG X-Series RF analog signal generator with -146 dBc/Hz phase noise, +24 dBm output power, and 9 kHz to 3 GHz range.
Product details
| Model | N5181B/503 |
| Manufacturer | Keysight |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Keysight N5181B MXG X-Series is a high-performance RF analog signal generator designed for testing and characterization of wireless devices, radar systems, and RF components. Covering 9 kHz to 3 GHz with exceptional phase noise and spurious performance, it provides the signal purity needed for demanding measurements and receiver validation.
Key Features
- Phase noise: -146 dBc/Hz @ 1 GHz, 20 kHz offset
- Spurious performance: -96 dBc @ 1 GHz
- Output power: +24 dBm @ 1 GHz
- Frequency switching speed: 900 µs
- Integrated multifunction generator for composite analog modulation
- Integrated pulse train generator for RADAR PRI and pulse width generation
Applications
- Radar receiver sensitivity testing
- ADC and mixer signal-to-noise ratio characterization
- Receiver front-end out-of-band rejection testing
- Multi-channel composite analog modulation simulation
- Variable RADAR PRI and pulse width generation
Specifications
| Maximum Frequency | 3 GHz |
| Frequency Range | 0.5 - 4.0 |
| Series | MXG X-Series |
