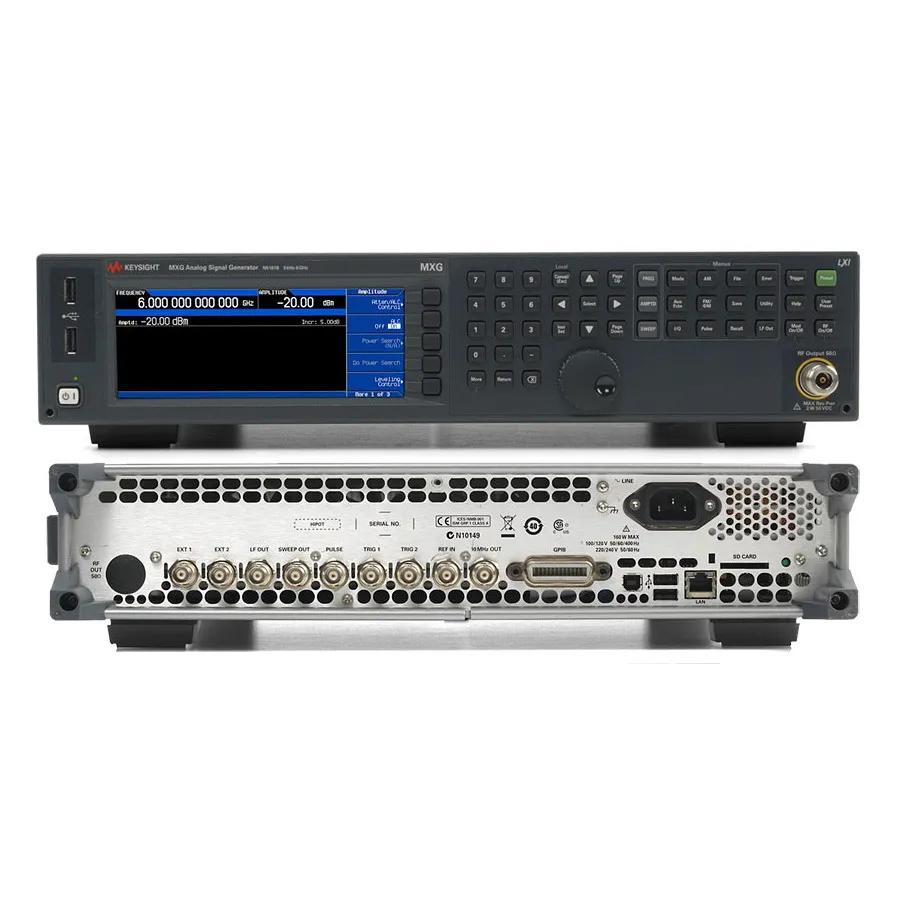

Keysight N5181B/099/503 RF Analog Signal Generator
Request a quote
Keysight N5181B MXG X-Series RF signal generator with 9 kHz to 3 GHz coverage, -146 dBc/Hz phase noise, and expanded license key upgradability.
Product details
| Model | N5181B/099/503 |
| Manufacturer | Keysight |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Keysight N5181B MXG X-Series is a high-performance RF analog signal generator designed for testing radar receivers, ADCs, mixers, and receiver front-ends. With superior phase noise and spurious performance, it delivers the dynamic range and output power needed for demanding test applications in wireless, military communications, and radar systems. This model includes expanded license key upgradability for simplified future upgrades.
Key Features
- Frequency range: 9 kHz to 3 GHz
- Phase noise: -146 dBc/Hz @ 1 GHz, 20 kHz offset
- Spurious performance: -96 dBc @ 1 GHz
- Output power: +24 dBm @ 1 GHz
- Switching speed: 900 µs
- Expanded license key upgradability for Options 1EA, UNV, and UNZ
- Integrated multifunction generator for composite analog modulation
- Integrated pulse train generator for RADAR PRI and pulse width control
Applications
- Radar receiver sensitivity testing
- ADC and mixer signal-to-noise ratio characterization
- Receiver front-end out-of-band rejection testing
- Consumer wireless device testing
- Military communication system validation
Specifications
| Maximum Frequency | 3 GHz |
| Frequency Range | 0.5 - 4.0 |
| Series | MXG X-Series |
