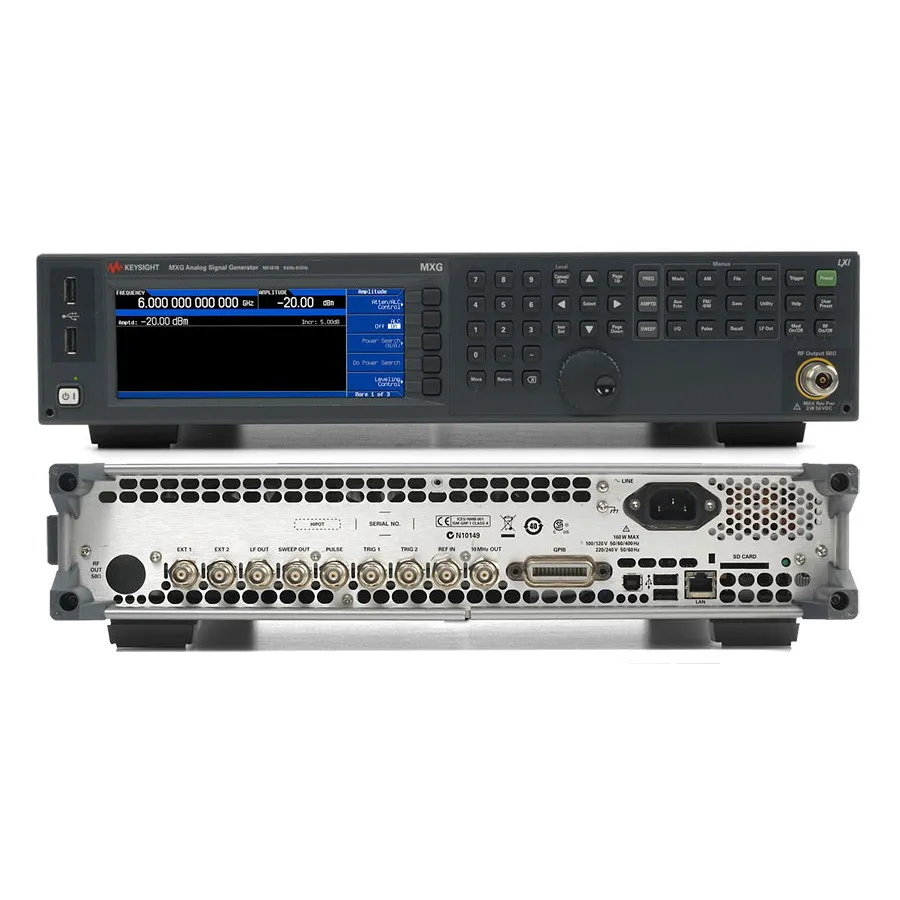

Keysight N5181B MXG X-Series RF Analog Signal Generator
Request a quote
Keysight N5181B is a microwave RF analog signal generator covering 9 kHz to 3 GHz with <-110 dBm output, AM/FM/Phase modulation, and narrow pulse capabilities.
Product details
| Model | N5181B/006/1CP104A/1EQ/303/503/UNT/UNW |
| Manufacturer | Keysight |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Keysight N5181B is a microwave RF analog signal generator in the MXG X-Series family, designed for wireless communications testing and RF measurement applications. It covers the frequency range from 9 kHz to 3 GHz with exceptional phase noise performance and versatile modulation capabilities.
Key Features
- Frequency range: 9 kHz to 3 GHz
- Output level less than -110 dBm
- AM, FM, and Phase modulation
- Narrow pulse capability
- Instrument security and removable memory card (Option 006)
- Low-level power measurement (Option 1EQ)
Applications
- Wireless communications testing
- RF and microwave component characterization
- Receiver sensitivity testing
- Signal simulation for avionics and aerospace applications
Specifications
| Series | MXG X-Series |
