Keysight N5181B RF Analog Signal Generator

Overview

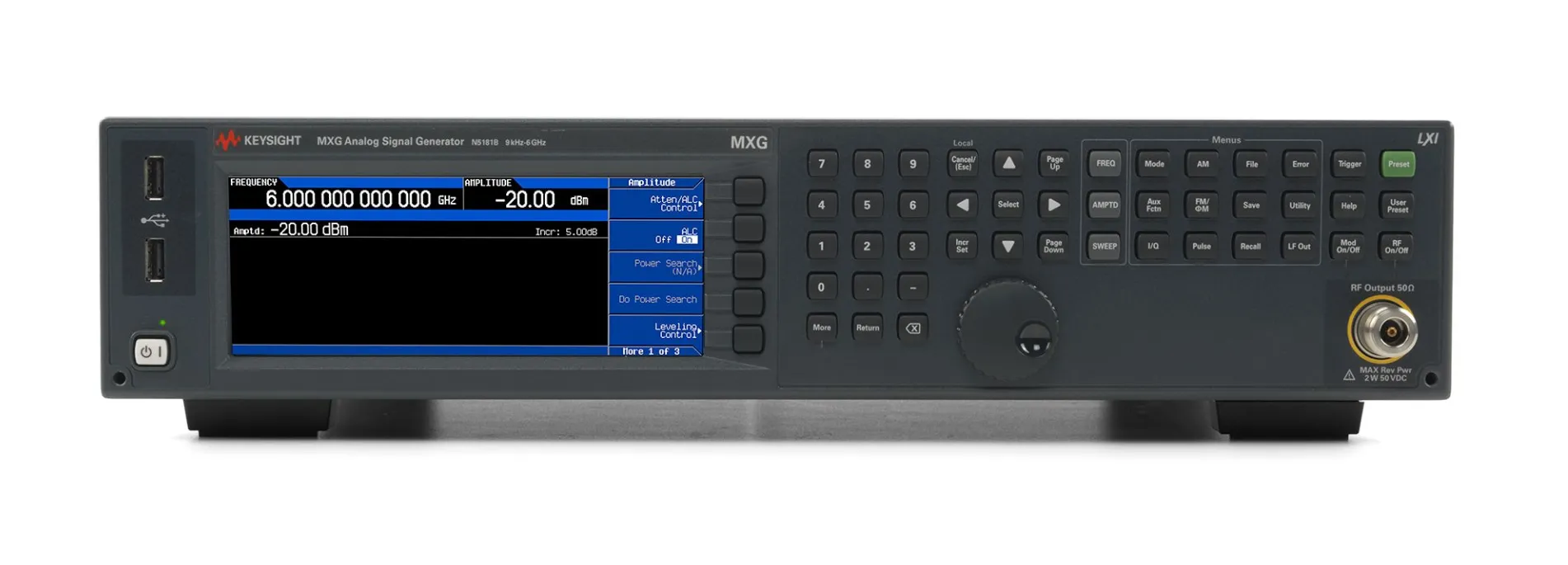

The Keysight N5181B MXG X-Series is a high-performance RF analog signal generator designed to serve as a golden transmitter for R&D and manufacturing. It covers 9 kHz to 6 GHz with outstanding spectral purity, output power, switching speed, and modulation capability. The compact 2-rack-unit design reduces test stand footprint while delivering performance comparable to larger systems.

Key Features

• Frequency range: 9 kHz to 6 GHz (1, 3, or 6 GHz options available)
• Frequency resolution: 0.01 Hz
• Fast switching speeds: ≤1.5 ms in SCPI mode (≤1.15 ms with Option UNZ)
• Simultaneous frequency and amplitude switching: ≤5 ms in list mode (≤900 μs with Option UNZ)
• SSB phase noise: -131 dBc/Hz at 20 kHz offset from 1 GHz carrier (up to -141 dBc/Hz with options)
• Output power: -144 dBm to +18 dBm at 3 GHz (-144 dBm to +24 dBm with Option 1EA)
• Integrated pulse train generator for RADAR PRI and pulse width simulation
• Multi-function analog modulation (AM, FM, PM)

Applications

• Cellular and wireless connectivity component manufacturing
• Radar receiver sensitivity testing
• Multi-channel composite analog modulation simulation
• DUT stimulation and remote high-power amplifier drive
• Module and system-level testing
• Variable RADAR pulse generation

Interfaces

• GPIB IEEE-488.2, 1987 (listen and talk)
• 1000BaseT LAN (LXI Class C compliant)
• USB Version 2.0
• SCPI Version 1997.0 control language
• RF output connector: Type N (f)
