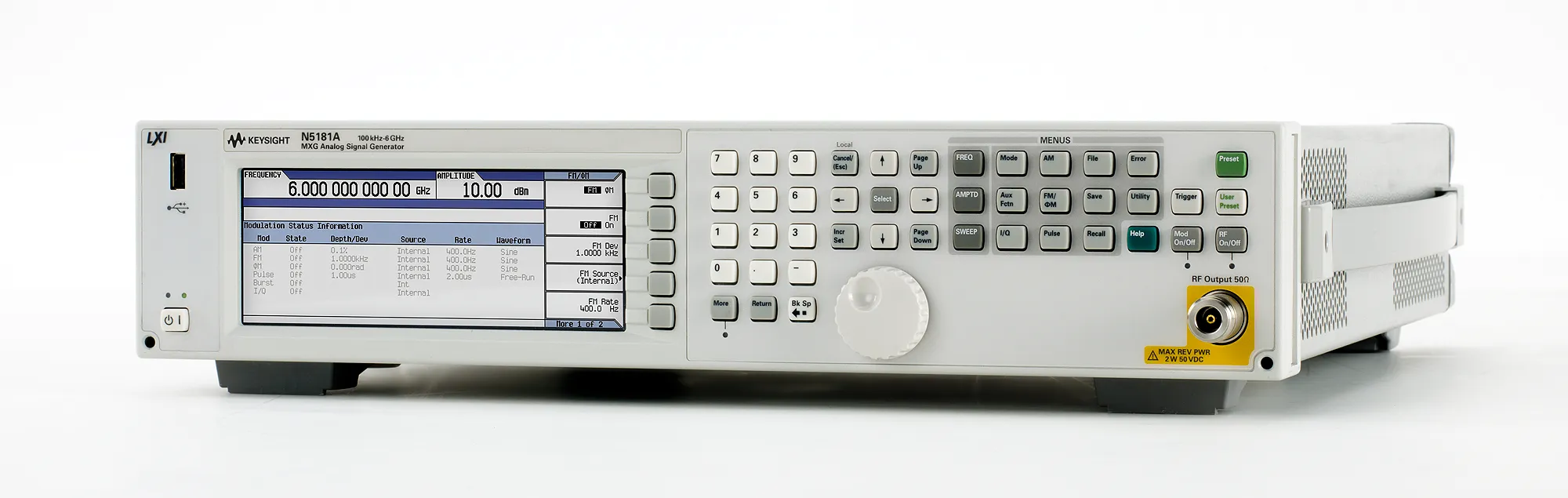

Keysight N5181A MXG RF Analog Signal Generator
Request a quote
Keysight N5181A is an MXG RF analog signal generator available in 1, 3, and 6 GHz models with +23 dBm max output power and -121 dBc/Hz phase noise.
Product details
| Model | N5181A |
| Manufacturer | Keysight |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Keysight N5181A MXG is an RF analog signal generator optimized for manufacturing tests. It provides accurate and repeatable reference signals with scalable RF performance, easily configured to meet specific test needs including LO and clock substitution, CW interferers, and modulated signals for analog communication systems.
Key Features
- Available in 1, 3, and 6 GHz models
- Output power: -127 dBm to +23 dBm at 1 GHz
- Phase noise at 1 GHz (20 kHz offset): -121 dBc/Hz
- Fast frequency switching: <700 µs (typical)
- Simultaneous frequency and amplitude switching: ≤5 ms
- Optional UNZ improves switching to <1.15 ms in SCPI mode
- Modulation modes: AM, FM, PM, Pulse, Pulse Train Generator
- Frequency modulation maximum deviation at 1 GHz: 10 MHz
- Multiple interfaces: GPIB IEEE-488.2, LAN 100BaseT, USB 2.0, LXI class C compliant
Applications
- Parametric testing of broadband components and receivers
- LO and clock substitution
- CW interferer generation for receiver testing
- Modulated signal generation for analog communication systems
- Manufacturing and functional verification testing
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Form Factor | Benchtop |
| Low Frequency (range) | 1kHz <= 100kHz |
