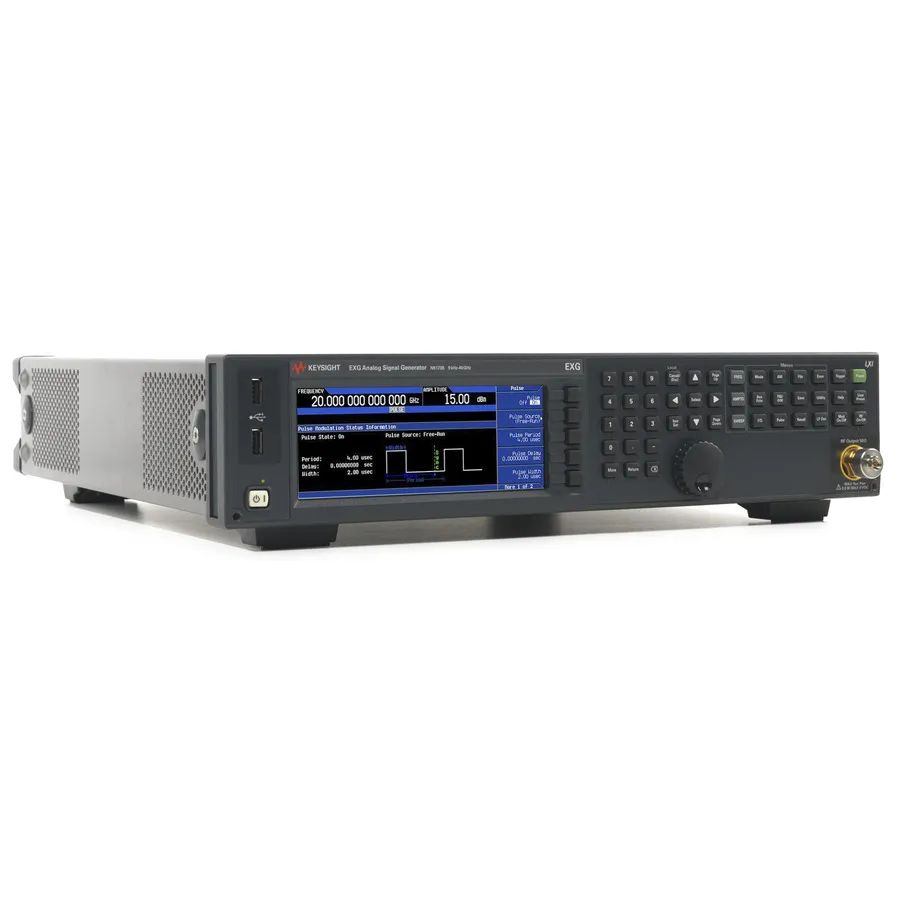

Keysight N5173B/532 Microwave Analog Signal Generator
Request a quote
Keysight N5173B/532 microwave analog signal generator covering 9 kHz to 31.8 GHz with -118 dBc/Hz phase noise and +19 dBm output power for parametric testing.
Product details
| Model | N5173B/532 |
| Manufacturer | Keysight |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Keysight N5173B/532 is a cost-effective microwave analog signal generator designed for parametric testing of broadband components, including filters, amplifiers, and receivers. It delivers accurate signals across the 9 kHz to 31.8 GHz frequency range with excellent phase noise characteristics and stable output power.
Key Features
- Frequency range: 9 kHz to 31.8 GHz
- Phase noise: -118 dBc/Hz (at 1 GHz, 20 kHz offset)
- Maximum output power: +19 dBm
- Low harmonics: ≤ –55 dBc
- Full-step attenuation for precise output control
- Fast frequency switching: 600 µs
- High-stability OCXO reference with ±5 ppb/day aging rate
Applications
- Parametric testing of microwave components and receivers
- LO up conversion for microwave backhaul links
- CW blocking for receiver testing
- Characterization of microwave filters and amplifiers
- High-stability system reference
Included Accessories
- 2.4 mm female-female and 2.4 mm female to 2.9 mm female adapters
Specifications
| Maximum Frequency | 31.8 GHz |
| Frequency Range | > 30.0 |
| Series | EXG X-Series |
