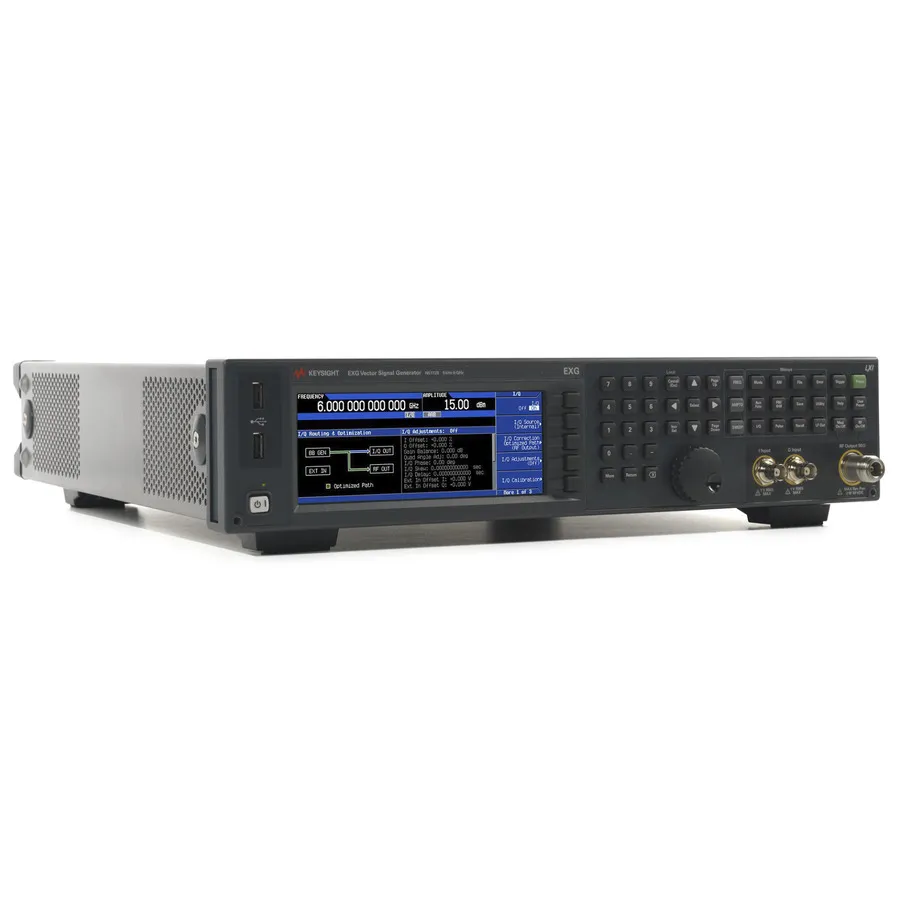

Keysight N5172B/506 RF Vector Signal Generator
Request a quote
Keysight N5172B/506 RF Vector Signal Generator covers 9 kHz to 6 GHz with -122 dBc/Hz phase noise and 160 MHz internal RF bandwidth for manufacturing tests.
Product details
| Model | N5172B/506 |
| Manufacturer | Keysight |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Keysight N5172B/506 EXG X-Series is a cost-effective RF Vector Signal Generator providing 9 kHz to 6 GHz frequency coverage with excellent phase noise performance. Designed for manufacturing test environments, it delivers the necessary signals for component testing, receiver verification, and advanced testing compatible with modern communication standards.
Key Features
- Frequency range: 9 kHz to 6 GHz (5 MHz in IQ mode)
- Phase noise at 1 GHz, 20 kHz offset: -122 dBc/Hz
- Maximum RF output power: +26 dBm
- Frequency switching: 800 µs for improved test throughput
- Maximum RF bandwidth: 160 MHz internal / 200 MHz external
- Excellent ACPR, EVM, and output power characteristics
- Front panel control with SCPI automation via LAN, GPIB, or USB
- Scalable architecture to add higher power, real-time baseband, or multi-function capabilities
Applications
- Component parametric testing and functional verification
- Receiver testing for wireless and cellular standards
- Adjacent Channel Power Ratio (ACPR) measurement
- Error Vector Magnitude (EVM) characterization
- Manufacturing test automation
Software & Tools
- Signal Studio: signal creation software for baseband, RF, and microwave frequencies
- PathWave Signal Generation: advanced integrated signal creation platform with enhanced features
Specifications
| Maximum Frequency | 6 GHz |
| Frequency Range | 4.0 - 8.0 |
| Series | EXG X-Series |
