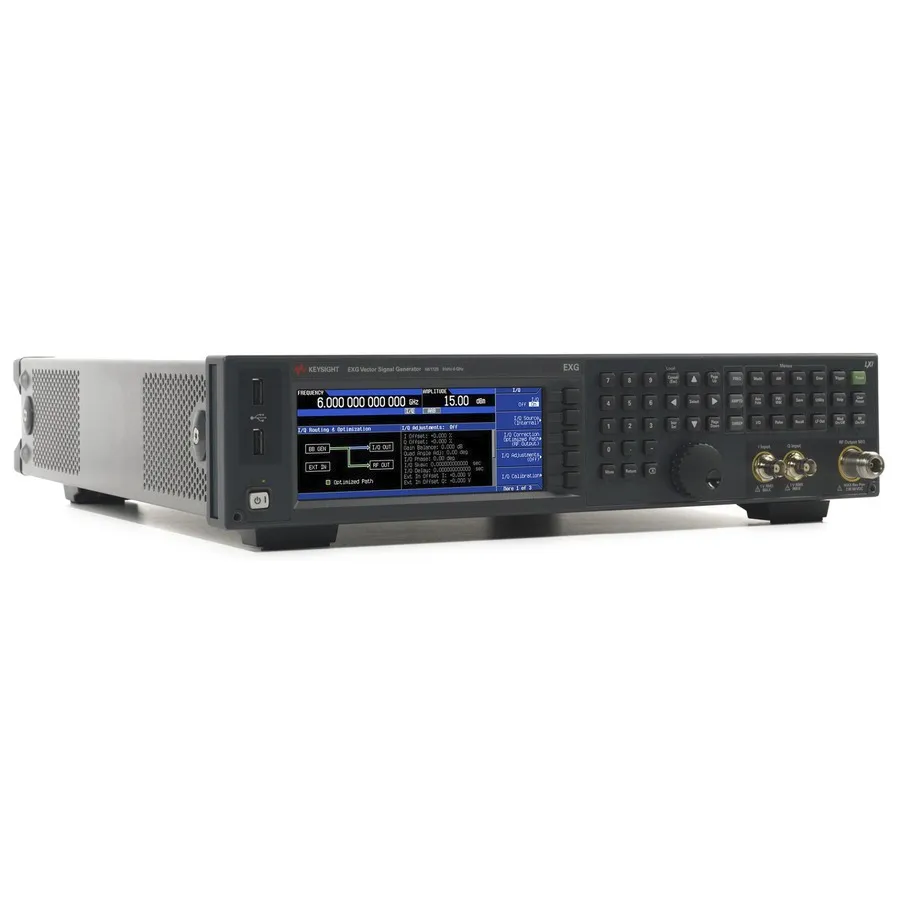

Keysight N5172B RF Vector Signal Generator
Request a quote
Keysight N5172B RF Vector Signal Generator with multiple frequency range configurations from 9 kHz to 6 GHz for component testing and manufacturing applications.
Product details
| Model | N5172B/012/506/653/655/660 |
| Manufacturer | Keysight |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Keysight N5172B EXG X-Series is a cost-effective RF Vector Signal Generator designed for manufacturing test environments. It offers multiple frequency range configurations from 9 kHz to 6 GHz with excellent phase noise performance and fast frequency switching, making it ideal for comprehensive component testing and receiver verification.
Key Features
- Multiple frequency range options from 9 kHz to 3 GHz or 6 GHz
- Phase noise at 1 GHz, 20 kHz offset: -122 dBc/Hz
- Maximum RF output power: +26 dBm
- Frequency switching: 800 µs
- Maximum RF bandwidth: 160 MHz internal / 200 MHz external
- Front panel control with SCPI automation via LAN, GPIB, or USB
- Scalable performance with optional power amplifiers and baseband generators
Applications
- Component parametric testing and functional verification
- Receiver testing with modern standards compliance
- Manufacturing test automation and throughput optimization
- ACPR and EVM measurement
Specifications
| Series | EXG X-Series |
