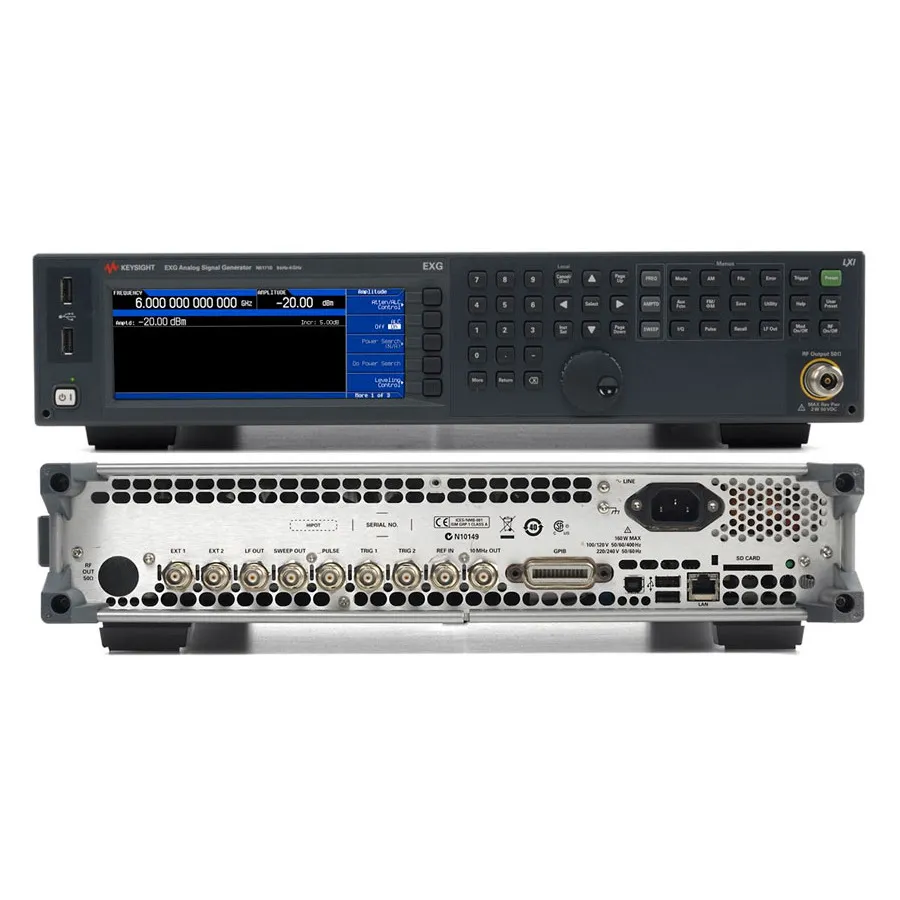

Keysight N5171B/503/1EA RF Analog Signal Generator

Overview

The Keysight N5171B/503/1EA EXG X-Series is a high-power RF analog signal generator optimized for manufacturing test applications requiring enhanced output power. Covering 9 kHz to 3 GHz with high output power of +27 dBm at 1 GHz, it provides the signal strength needed for testing components with higher power requirements while maintaining excellent level accuracy and repeatability. Fast frequency switching at 900 µs and a compact form factor maximize test throughput.

Key Features

• High output power at +27 dBm at 1 GHz for enhanced signal delivery
• Excellent level accuracy and repeatability for confident component testing
• Fast frequency switching for maximized test throughput
• Compact two-unit height design minimizes test stand footprint
• Proven architecture with high mean time between failures (MTBF)
• Low-cost self-maintenance strategy reduces downtime and repair expenses
• Upgradeable for future capability expansion

Applications

• High-power component testing
• Receiver and transceiver calibration
• Manufacturing production test for power-sensitive applications
