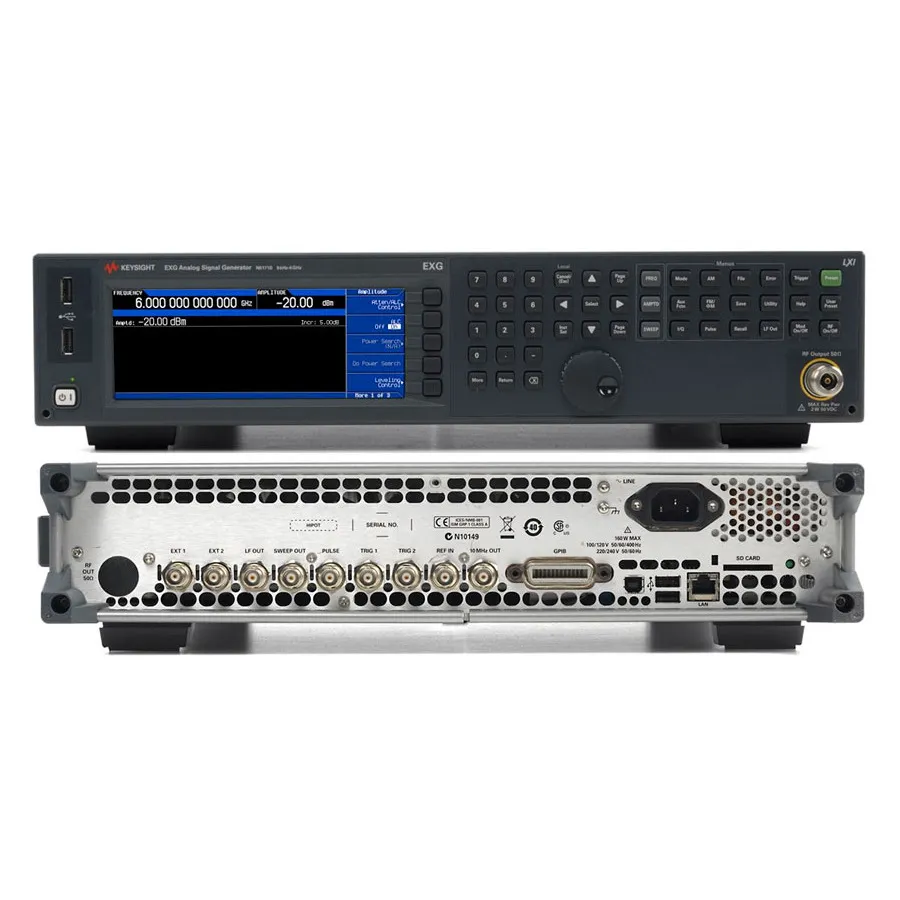

Keysight N5171B/503 RF Analog Signal Generator

Overview

The Keysight N5171B/503 EXG X-Series is a cost-effective RF analog signal generator optimized for manufacturing test applications. Designed for parametric testing of components and receiver calibration, the N5171B/503 covers 9 kHz to 3 GHz with excellent phase noise performance of -146 dBc/Hz at 1 GHz (20 kHz offset) and output power of +24 dBm. Fast frequency switching at 900 µs and a compact form factor maximize test throughput and minimize test stand footprint.

Key Features

• Excellent level accuracy and repeatability for confident component testing
• High output power compensates for test system losses
• Fast frequency switching for maximized test throughput
• Compact two-unit height design fits easily into existing test stands
• Proven architecture with high mean time between failures (MTBF)
• Low-cost self-maintenance strategy reduces downtime and repair expenses
• Upgradeable for future capability expansion

Applications

• Component parametric testing
• Receiver calibration and verification
• Manufacturing production test
