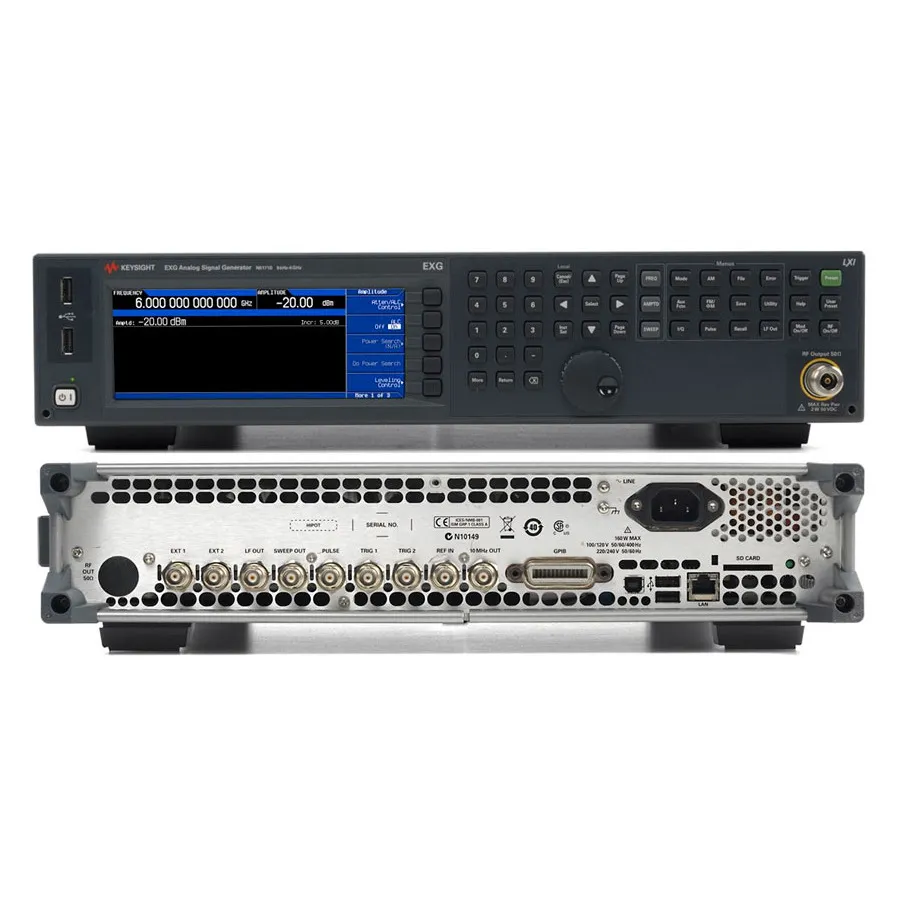

Keysight N5171B/501 EXG X-Series RF Analog Signal Generator
Request a quote
Keysight N5171B/501 RF analog signal generator (9 kHz–1 GHz), optimized for manufacturing tests with high output power and excellent level accuracy.
Product details
| Model | N5171B/501 |
| Manufacturer | Keysight |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Keysight N5171B EXG X-Series RF analog signal generator is a cost-effective solution for manufacturing tests and component calibration. Operating from 9 kHz to 1 GHz, it delivers the essential signals needed for basic parametric testing of components and receiver calibration.
Key Features
- Frequency range: 9 kHz to 1 GHz
- Output power @ 1 GHz: +27 dBm
- Phase noise @ 1 GHz (20 kHz offset): -122 dBc/Hz
- Spurious @ 1 GHz: -72 dBc
- Fast 900-µs switching speed
- Excellent level accuracy and repeatability
- Compact two rack-unit form factor
Applications
- Component parametric testing
- Receiver calibration
- Manufacturing test systems
Specifications
| Maximum Frequency | 1 GHz |
| Frequency Range | 0.5 - 4.0 |
| Series | EXG X-Series |
