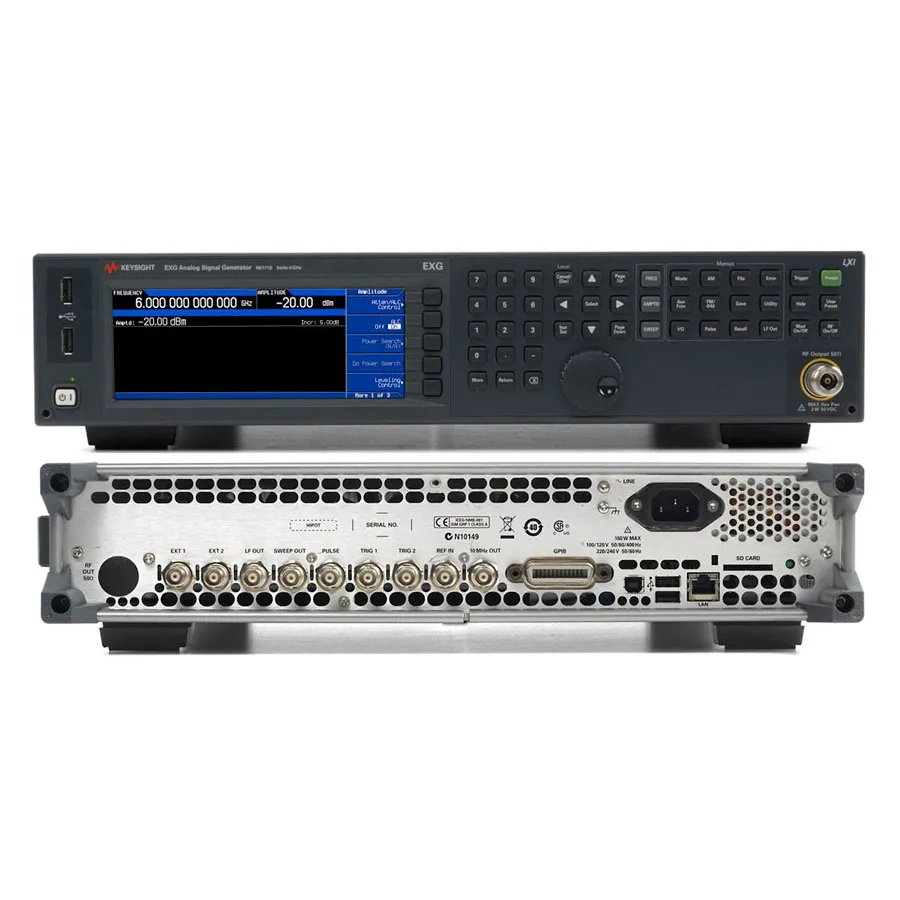

Keysight N5171B EXG X-Series Signal Generator
Request a quote
Keysight N5171B EXG X-Series RF signal generator optimized for manufacturing tests, 9 kHz to 1 GHz, +27 dBm output, 900-µs switching.
Product details
| Model | N5171B/099/501 |
| Manufacturer | Keysight |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Keysight N5171B EXG X-Series is a cost-effective RF analog signal generator designed for manufacturing test applications. With frequency coverage from 9 kHz to 1 GHz, it delivers excellent level accuracy and repeatability for parametric testing of components and receiver calibration.
Key Features
- Frequency range: 9 kHz to 1 GHz
- Output power: +27 dBm at 1 GHz
- Phase noise: -122 dBc/Hz at 1 GHz (20 kHz offset)
- Spurious: -72 dBc at 1 GHz
- Switching speed: 900 microseconds
- Expandable via license key for future upgrades
- High mean time between failures (MTBF)
Applications
- Manufacturing parametric testing of RF components
- Receiver calibration and validation
- Component characterization
- Fast-switching test applications
Specifications
| Maximum Frequency | 1 GHz |
| Frequency Range | 0.5 - 4.0 |
| Series | EXG X-Series |
