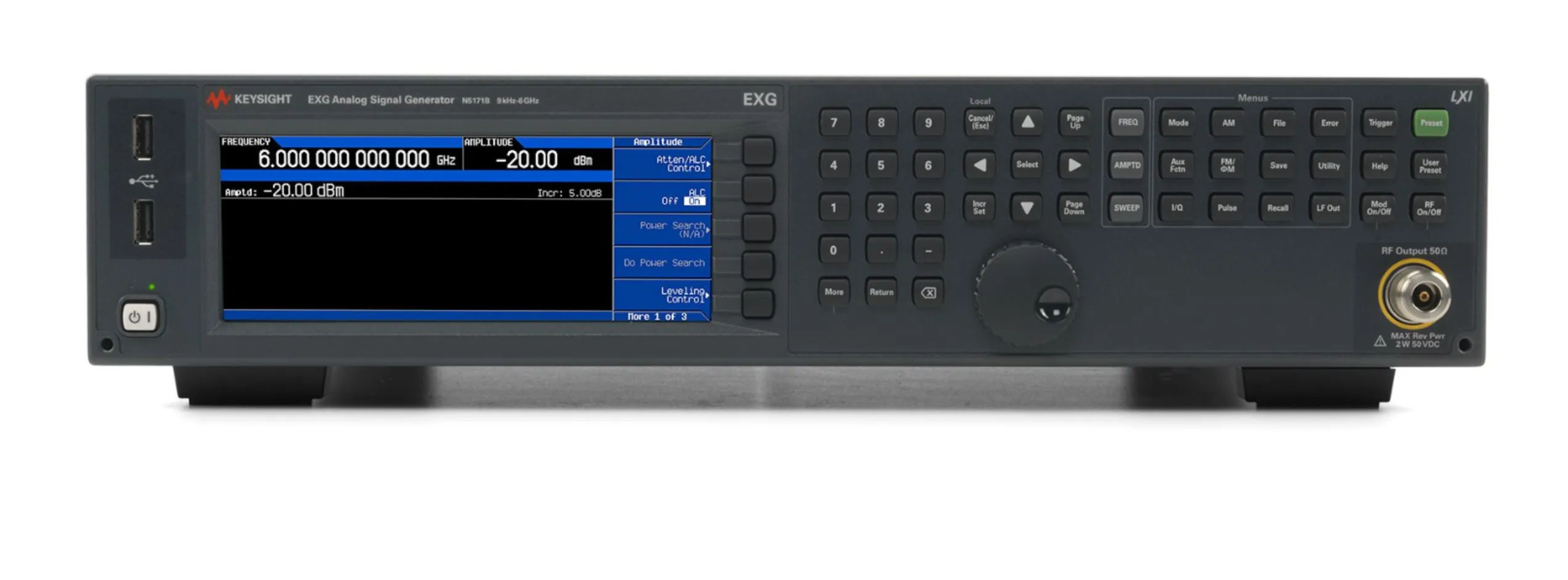

Keysight N5171B EXG X-Series RF Signal Generator
Request a quote
Keysight N5171B EXG X-Series RF signal generator delivers 9 kHz–6 GHz coverage with –122 dBc/Hz phase noise, 27 dBm output power, and AM/FM/PM modulation.
Product details
| Model | N5171B |
| Manufacturer | Keysight |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Keysight N5171B is an EXG X-Series RF analog signal generator optimized for manufacturing with faster throughput and greater uptime. It provides frequency coverage from 9 kHz to 6 GHz with excellent phase noise performance and spectral purity.
Key Features
- Frequency range: 9 kHz to 1, 3, or 6 GHz
- Output power: +21 dBm to 3 GHz with electronic attenuator
- Phase noise: –122 dBc/Hz @ 1 GHz (20 kHz offset)
- Fast frequency and power switching: less than 900 µs simultaneous switching
- Level repeatability: less than 0.1 dB
- Modulation support: AM, FM, Phase Modulation, narrow pulse
- Pulse train generator and 10 MHz multifunction generator
- Digital step and list sweep modes
Interfaces & Compatibility
- 1000BaseT LAN, LXI, USB 2.0, and GPIB
- SCPI, IVI-COM, MATLAB drivers
- Backward compatible with ESG, MXG, PSG, and 8648x series
- Keysight USB power sensor compatible
Applications
- Receiver testing with advanced signal standards
- Manufacturing and production testing
- Telecommunications equipment validation
- RF and microwave component characterization
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Form Factor | Benchtop |
| Low Frequency (range) | 1kHz <= 100kHz |
