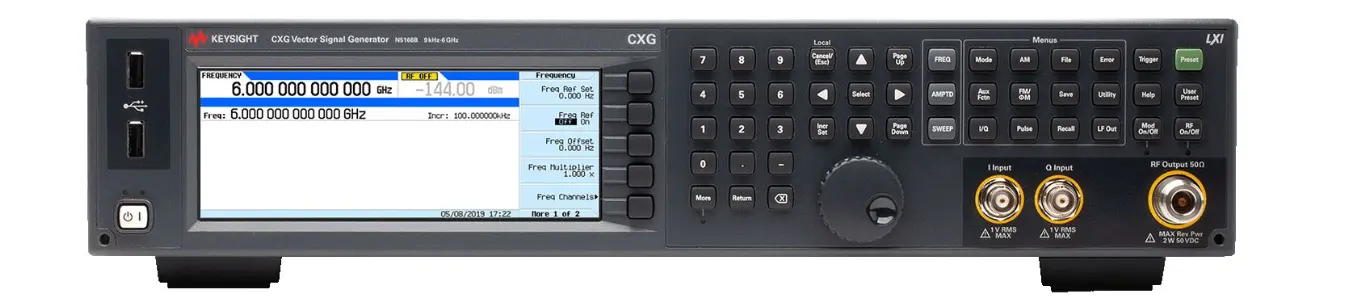

Keysight N5166B CXG RF Vector Signal Generator
Request a quote
Keysight N5166B CXG is a low-cost RF vector signal generator covering 9 kHz to 6 GHz with 120 MHz bandwidth, supporting Bluetooth, LTE, 5G, and IoT protocols.
Product details
| Model | N5166B |
| Manufacturer | Keysight |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Keysight N5166B CXG is an economical, multi-functional RF vector signal generator designed for IoT, consumer electronics, and educational applications. Covering a frequency range of 9 kHz to 6 GHz with up to 120 MHz RF modulation bandwidth, the CXG provides essential test capabilities for receiver verification and wireless device design validation across multiple communication standards.
Key Features
- Frequency range: 9 kHz to 3 or 6 GHz with up to 120 MHz RF modulation bandwidth
- Supports multiple wireless standards: Bluetooth, cdma2000, GSM/EDGE, LTE/LTE-Advanced, TD-SCDMA, W-CDMA, WLAN 802.11 (a/b/g/j/p/n/ac/ah/ax), 5G NR, IoT protocols (Zigbee, Z-Wave, WiSUN, LoRa), V2X, and DFS Radar
- Output power: +18 dBm at 1 GHz
- Phase noise: -119 dBc/Hz at 1 GHz (20 kHz offset)
- Frequency switching: ≤5 ms typical
- Waveform playback memory: 512 MSa
- Low-cost maintenance and repair solutions
Applications
- Parametric component and functional verification of receivers
- IoT device design and verification testing
- Consumer electronics wireless system validation
- Educational wireless communication demonstrations
Specifications
| Form Factor | Benchtop |
