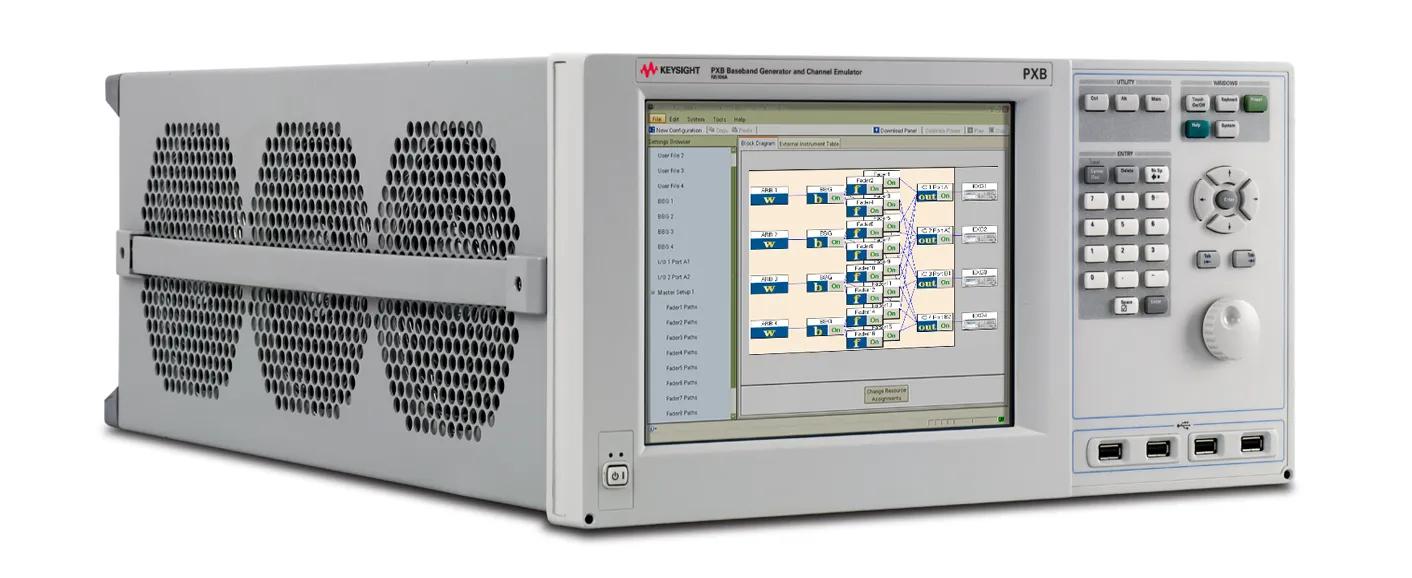

Keysight N5106A PXB Baseband Generator
Request a quote
Keysight N5106A PXB combines multi-format baseband generation, real-time fading, and signal capture in one instrument for receiver validation testing.
Product details
| Model | N5106A |
| Manufacturer | Keysight |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Keysight N5106A PXB is a baseband generator and channel emulator that combines multi-format baseband signal generation, real-time channel fading simulation, and signal capture capability in a single instrument. Designed for receiver signal processing validation, the PXB enables engineers to test designs under realistic wireless communication scenarios with rapid prototyping and design iteration.
Key Features
- Multi-format baseband generation with real-time channel emulation
- 512 MSa playback memory per channel for extended signal scenarios
- 20 calibrated configurations that can be redefined in seconds for standards compliance testing
- Real-time fading simulation for receiver validation
- Signal capture for design verification and troubleshooting
- PathWave Signal Generation software support for waveform playback and real-time generation
Applications
- Receiver design and validation under realistic fading conditions
- Multi-standard wireless system testing
- Real-world signal scenario simulation for rapid design iteration
Specifications
| Type | Baseband Generator and Channel Emulator |
| Playback Memory per Channel | 512 MSa |
| Preconfigured Setups | 20 calibrated configurations |
| Capabilities | Multi-format baseband generation, real-time fading, signal capture |
| Software Support | PathWave Signal Generation (waveform playback and real-time) |
