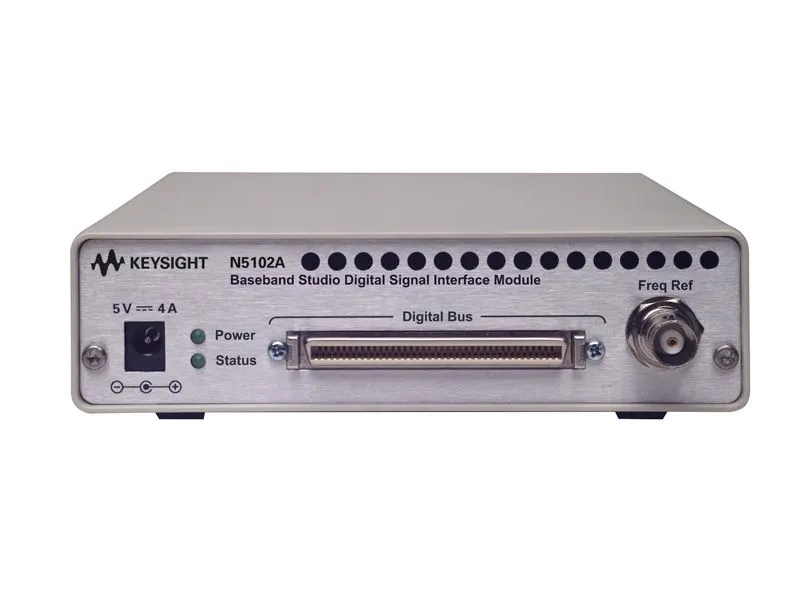

Keysight N5102A Digital Signal Interface Module

Overview

The Keysight N5102A digital signal interface module provides fast and flexible digital input/output connectivity for a range of Keysight signal generators including the N5182B MXG, N5172B EXG, E8267C, E8267D PSG, E4438C ESG, and N5106A PXB systems. In output mode, the module delivers complex-modulated signals such as LTE, HSPA, W-CDMA, GPS, WLAN, and custom waveforms directly to digital devices. In input mode, it enables digital inputs to be upconverted to calibrated analog IF, RF, or microwave frequencies.

Key Features

• Supports both digital input and output modes
• Flexible data formats: I/Q, IF, serial, parallel, 2's complement, binary offset, 4 to 16-bit words
• Automatic resampling from 1 to 200 MHz with multiple clock inputs and outputs
• Adjustable clock-to-data skew for timing optimization
• Multiple connector types with LV-TTL, CMOS (1.5V, 1.8V, 2.5V, 3.3V), and LVDS logic levels
• Three-meter extension cable for flexible device integration

Applications

• Baseband signal creation and upconversion to RF/microwave frequencies
• Digital device and subsystem testing with realistic modulated signals
• Custom signal generation for receiver validation

Included Accessories

• Three-meter extension cable with multiple connector options
