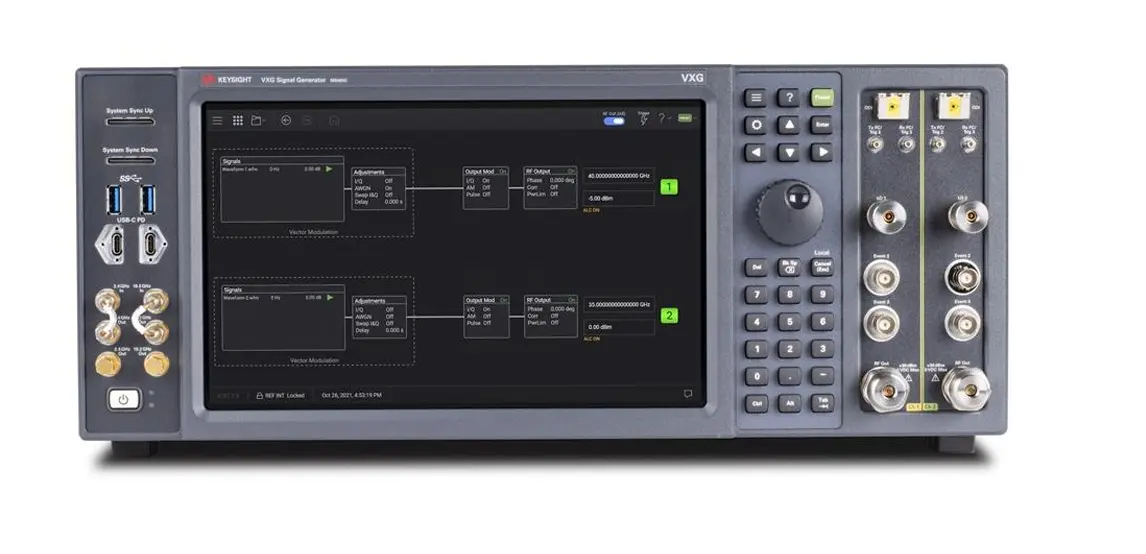

Keysight M9484C VXG Vector Signal Generator
Request a quote
Keysight M9484C VXG is the industry's first vector signal generator with 9 kHz to 54 GHz frequency and 2.5 GHz modulation bandwidth for 5G and satellite communications testing.
Product details
| Model | M9484C |
| Manufacturer | Keysight |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Keysight M9484C VXG is the industry's first vector signal generator capable of generating signals up to 54 GHz with 2.5 GHz of modulation bandwidth per channel. Engineered for next-generation wireless systems including 5G and satellite communications, the VXG provides a fully integrated, calibrated, and synchronized solution for designing and testing complex modulation schemes with stringent performance requirements.
Key Features
- Frequency range: 9 kHz to 54 GHz (up to 110 GHz with V3080A frequency extender)
- Modulation bandwidth: Up to 2.5 GHz per channel
- RF channels: 1, 2, or 4 synchronized and phase-coherent channels
- Waveform playback memory: Up to 4096 MSa
- Vector signal generator type for complex waveform generation
- Supports 3GPP 5G NR base station conformance testing with PathWave Signal Generation software
- Covers all 5G NR frequency bands and V-/W-band for satellite communications
- Up to 8 virtual-signal emulation per RF channel
Applications
- 5G and satellite communication system design and testing
- Wideband signal generation for carrier aggregation
- Digital pre-distortion (DPD) testing and development
- MIMO and beamforming test scenario emulation
- RF device characterization including phase noise, EVM, and ACPR measurement
Specifications
| Feature | Parameter |
| Frequency | 9 kHz to 54 GHz |
| RF Bandwidth | Up to 2.5 GHz |
| Waveform Playback Memory | Up to 4096 MSa |
| RF Channels | 1/2/4 Channels |
| Type | Vector |
