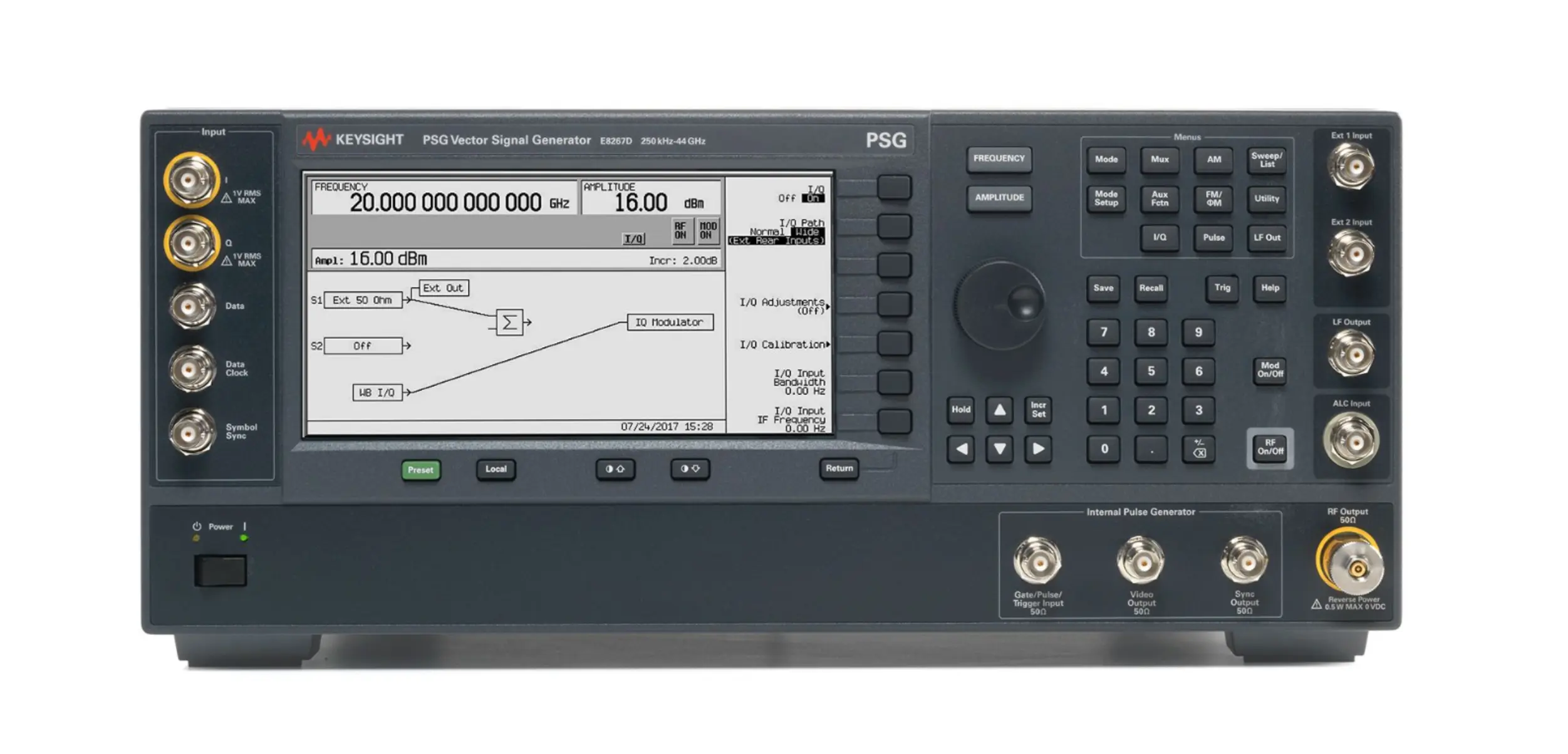

Keysight E8267D PSG Vector Signal Generator
Request a quote
Keysight E8267D is an integrated microwave vector signal generator covering 100 kHz to 44 GHz with I/Q modulation and -143 dBc/Hz phase noise.
Product details
| Model | E8267D |
| Manufacturer | Keysight |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Keysight E8267D PSG is an integrated high-performance microwave vector signal generator designed for aerospace, defense, satellite communications, and broadband wireless applications. Covering frequencies from 100 kHz to 44 GHz (extendable to 500 GHz), it combines a precision RF source with an advanced integrated baseband generator capable of producing complex modulated signals. The instrument delivers 23 dBm typical output power up to 20 GHz and -143 dBc/Hz phase noise at a 10 kHz offset for a 10 GHz signal.
Key Features
- Frequency range: 100 kHz to 44 GHz (extendable to 500 GHz)
- Output power: -130 dBm to +14 dBm
- SSB phase noise: -143 dBc/Hz at 1 GHz (10 kHz offset)
- I/Q modulation bandwidth: 80 MHz to 2 GHz
- Frequency resolution: 0.001 Hz
- 64 MSa waveform playback memory
- Flexible digital and analog modulation: FSK, MSK, PSK, QAM, custom I/Q, AM, FM, PM, pulse
- Multiple sweep modes: step, list, and ramp sweep for frequency and power
Applications
- Test advanced receivers with realistic wideband radar, EW, and Satcom waveforms
- Simulate complex electromagnetic environments with up to 2 GHz of RF bandwidth
- Design and manufacturing test for aerospace and defense systems
- Cellular, wireless, GPS, and custom communications signal generation
Specifications
| Form Factor | Benchtop |
