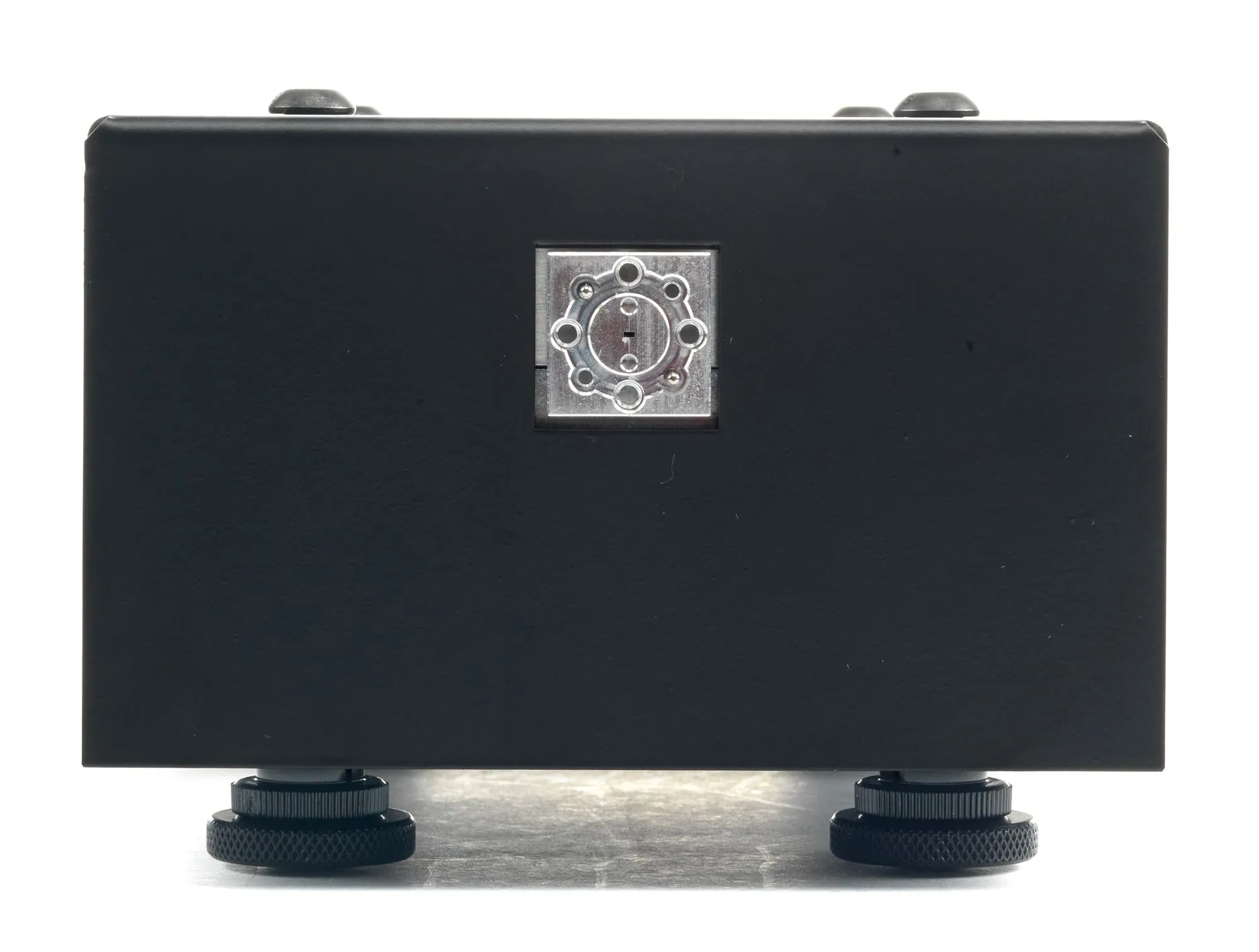

Keysight E8257DV15 WR15 Millimeter-Wave Signal Generator Extender
Request a quote
Keysight E8257DV15 WR15 millimeter-wave signal generator extender covering 50–75 GHz with +20 dBm output power.
Product details
| Model | E8257DV15 |
| Manufacturer | Keysight |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Keysight E8257DV15 is a millimeter-wave signal generator frequency extension module designed for the WR15 waveguide band. This frequency extender provides high-power millimeter test signals covering 50 to 75 GHz and integrates directly with Keysight signal generators including the E8257D PSG, E8267D PSG, N5183B MXG, and N5173B EXG. The module preserves the high frequency accuracy and resolution of the base generator while extending its capabilities into the millimeter-wave spectrum.
Key Features
- Frequency range: 50 to 75 GHz (WR15 waveguide band)
- WR15 output port flange for direct waveguide connection
- High output power: +20 dBm typical
- Direct frequency control and display from the base signal generator
- Supports pulse, FM, and phase modulation through the base generator
- Included 9V DC power supply
Applications
- Millimeter-wave component testing and characterization
- Radar system development and validation
- Wireless communication system testing
- Satellite communications testing
Specifications
| Waveguide Band | Frequency Range (GHz) RF Input Mode (Multiplication Factors) RF Input Mode (RF Input Frequencies (GHz)) Output Power (dBm) |
| E8257DV15 * | WR15SGX50 to 75WR15 signal generator frequency extender |
