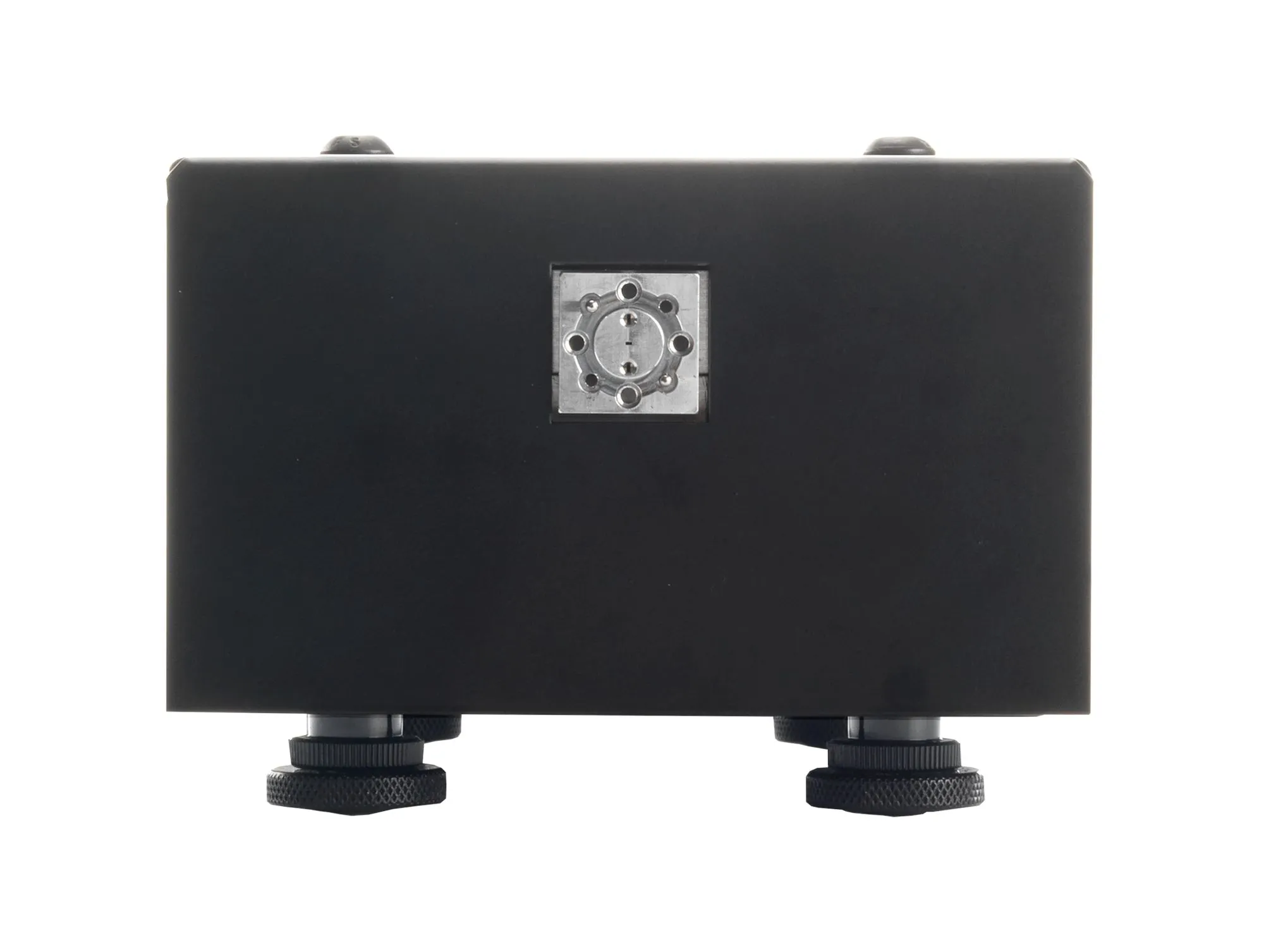

Keysight E8257DV10 Millimeter-Wave Signal Generator Extender
Request a quote
Keysight E8257DV10 — millimeter-wave signal generator extender with 75–110 GHz frequency range and +14 dBm output power.
Product details
| Model | E8257DV10 |
| Manufacturer | Keysight |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Keysight E8257DV10 is a millimeter-wave signal generator frequency extension module designed for use with the E8257D PSG, E8267D PSG, N5183B MXG, or N5173B EXG signal generators. It extends the frequency capability to the WR10 waveguide band, covering 75 to 110 GHz, while preserving the high frequency accuracy and resolution of the host signal generator.
Key Features
- Frequency range 75 to 110 GHz (WR10 waveguide band)
- High output power +14 dBm (typical), +10 dBm (specification)
- WR10 output port flange for direct connection
- Direct frequency control and display on the host signal generator
- Pulse, FM, and phase modulation capabilities
- Includes 9 V DC power supply
- Option A30 available: 0 to 30 dB variable mechanical attenuator
Applications
- Millimeter-wave component testing and characterization
- High-frequency communication systems testing
- Satellite and space applications
- Automotive radar testing
Specifications
| Waveguide Band | Frequency Range (GHz) RF Input Mode (Multiplication Factors) RF Input Mode (RF Input Frequencies (GHz)) Output Power (dBm) |
| E8257DV10 * | WR10SGX75 to 110WR10 signal generator frequency extender |
