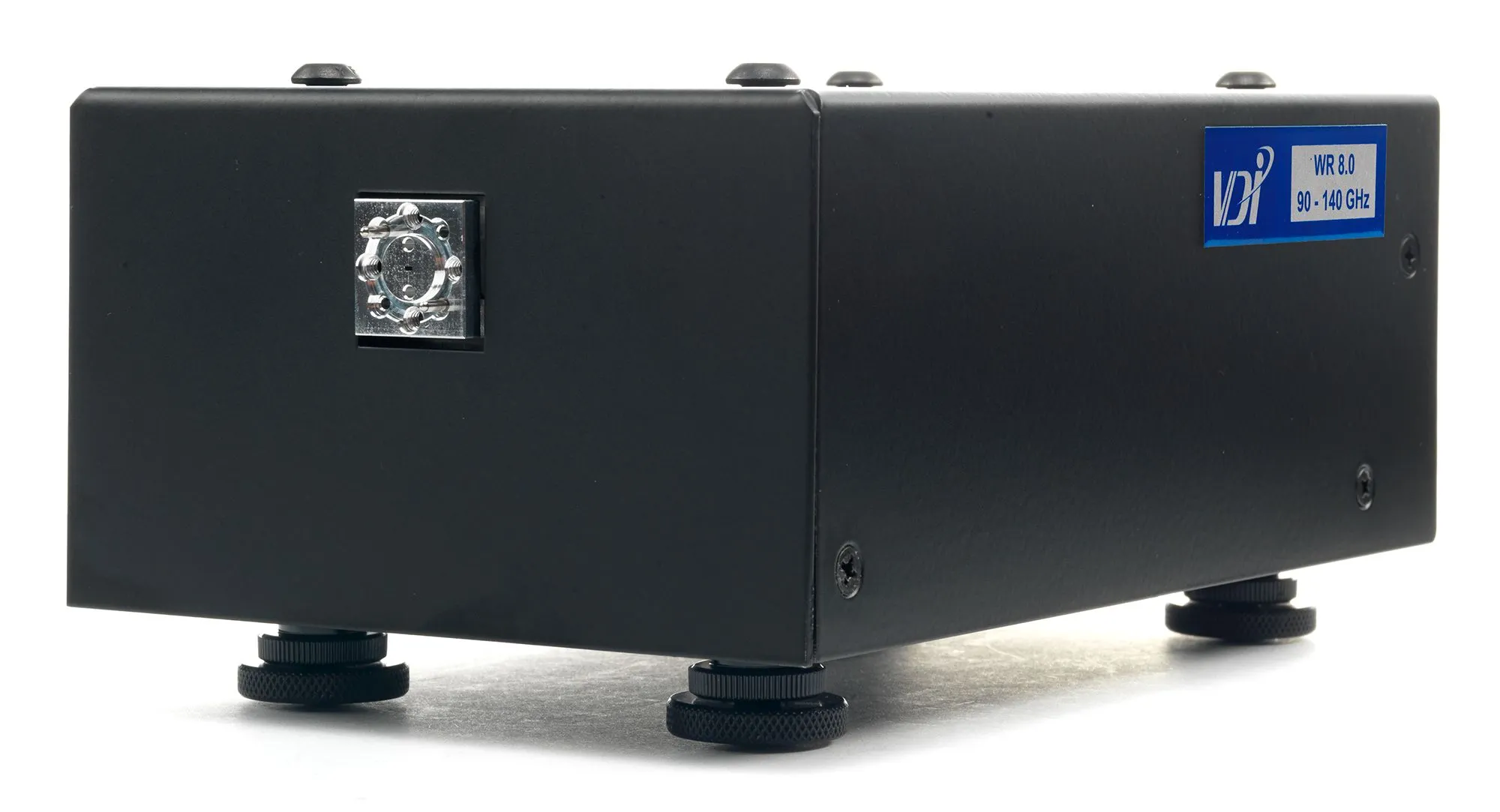

Keysight E8257DV08 Millimeter-Wave Signal Generator Extender
Request a quote
Keysight E8257DV08 — millimeter-wave signal generator extender with 90–140 GHz frequency range and +9 dBm output power.
Product details
| Model | E8257DV08 |
| Manufacturer | Keysight |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Keysight E8257DV08 is a millimeter-wave signal generator frequency extension module designed for use with the E8257D PSG, E8267D PSG, N5183B MXG, or N5173B EXG signal generators. It extends the frequency capability to the WR8 waveguide band, covering 90 to 140 GHz, while preserving the high frequency accuracy and resolution of the host signal generator.
Key Features
- Frequency range 90 to 140 GHz (WR8 waveguide band)
- High output power +9 dBm (typical), +6 dBm (specification)
- WR8 output port flange for direct connection
- Direct frequency control and display on the host signal generator
- Pulse, FM, and phase modulation capabilities
- Includes 9 V DC power supply
- Option A30 available: 0 to 30 dB variable mechanical attenuator
Applications
- Millimeter-wave component testing and characterization
- High-frequency communication systems testing
- Satellite and space applications
- Automotive radar testing
Specifications
| Waveguide Band | Frequency Range (GHz) RF Input Mode (Multiplication Factors) RF Input Mode (RF Input Frequencies (GHz)) Output Power (dBm) |
| E8257DV08 * | WR8.0SGX90 to 140WR8.0 signal generator frequency extender |
