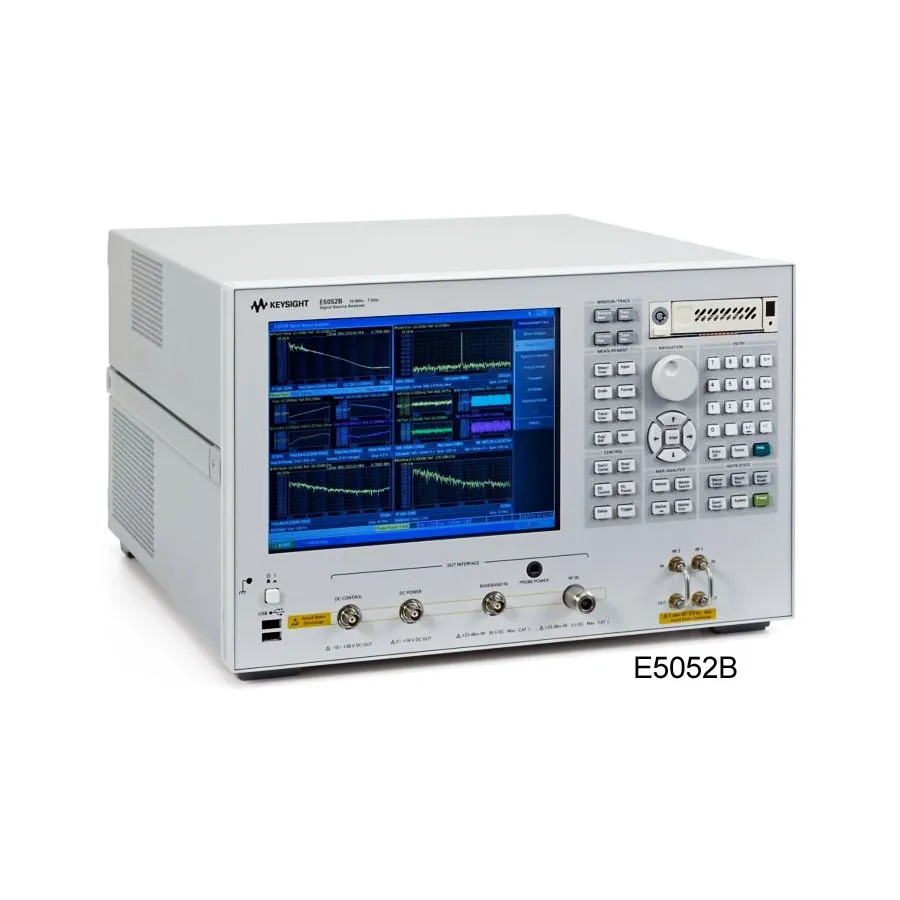

Keysight E5052B Signal Source Analyzer

Overview

The Keysight E5052B is a signal source analyzer designed for characterizing high-frequency signal sources, oscillators, and clock systems. Operating from 10 MHz to 7 GHz with optional extensions to 26.5 GHz (with E5053A) or 110 GHz (with E5053A and Keysight 11970 series mixers), the E5052B delivers outstanding measurement throughput and usability for VCO characterization and high-speed data communication applications.

Key Features

• Frequency range: 10 MHz to 7 GHz (expandable to 110 GHz with accessories)
• Phase noise measurement with ultra-low noise floor using cross-correlation technique
• Simultaneous transient measurements for frequency, phase, and power over time
• Video trigger function for capturing unexpected frequency changes
• Multi-window display for viewing multiple measurement results simultaneously
• Complete VCO characterization with DC sources (-15 to +35 V for Vtune, 0 to 16 V for Vcc)
• Clock jitter measurement with femtosecond resolution
• Spectrum monitoring up to 15 MHz span in real-time mode

Applications

• RF, microwave, and millimeter-wave oscillators
• VCO characterization and testing
• System reference clocks and timing modules
• LAN modules and high-speed communication systems
• SerDes chip characterization
• High-speed data converters (ADC/DAC) evaluation
• Clock jitter evaluation in high-speed data communication
