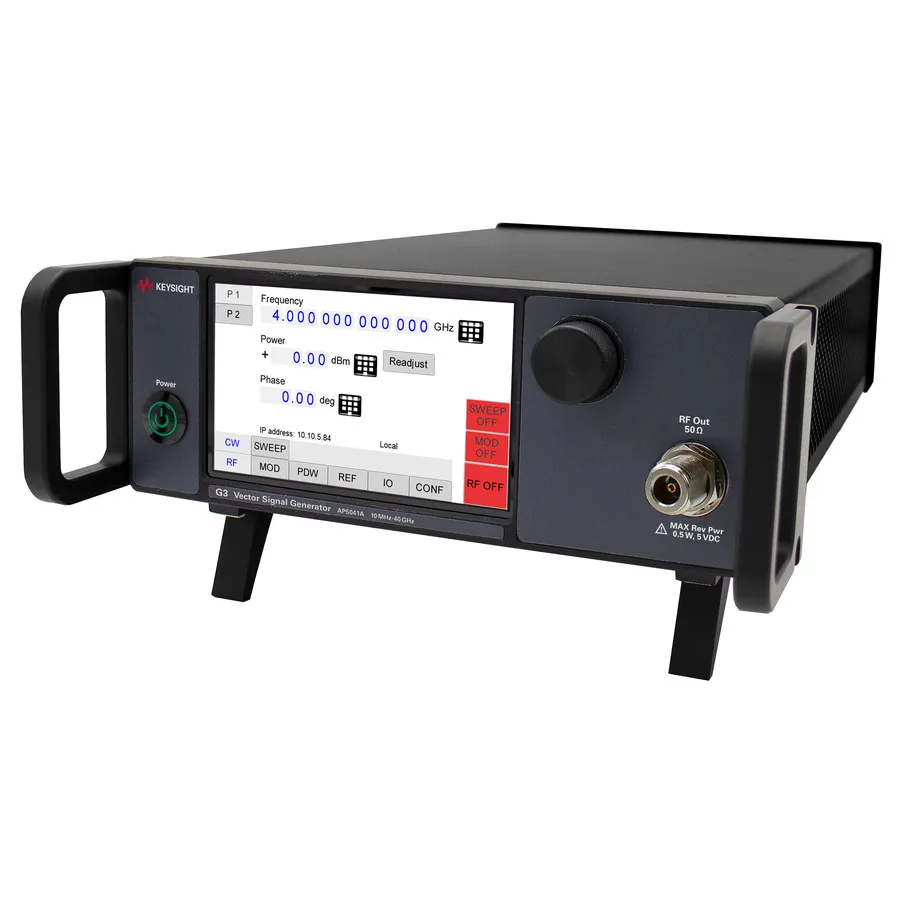

Keysight AP5041A/520/LN2 Vector Signal Generator
Request a quote
High-performance G3 Vector Signal Generator with 100 kHz to 20 GHz coverage, enhanced ultra-low phase noise, internal I/Q modulator, and fast frequency hopping for RF and microwave testing.
Product details
| Model | AP5041A/520/LN2 |
| Manufacturer | Keysight |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Keysight AP5041A/520/LN2 is a high-performance G3 Vector Signal Generator housed in a 2U enclosure, designed for advanced RF and microwave testing. Covering 100 kHz to 20 GHz, it delivers versatility for aerospace, defense, and telecommunications applications. It provides precise signal control with enhanced ultra-low phase noise, ensuring superior signal purity and long-term frequency stability for demanding testing environments.
Key Features
- Enhanced ultra-low phase noise for superior signal purity
- Internal I/Q modulator supporting AM, FM, PM, Pulse, FSK, PSK, ASK, and QAM modulation
- 400 MHz standard modulation bandwidth for wideband applications
- Fast frequency switching and agile hopping capabilities
- Ultra-narrow pulse train support
- 2.92 mm (m) RF output connector
Applications
- Satellite communications
- Radar simulation and testing
- Electronic warfare (EW) system development
- MIMO signal generation
- RF product validation and characterization
Specifications
| Maximum Frequency | 20 GHz |
| Frequency Range | 15.0 - 30.0 |
| Series | G3 Series |
| Special Features | Enhanced Ultra Low Close in Phase Noise and Long-Term Frequency Stability |
