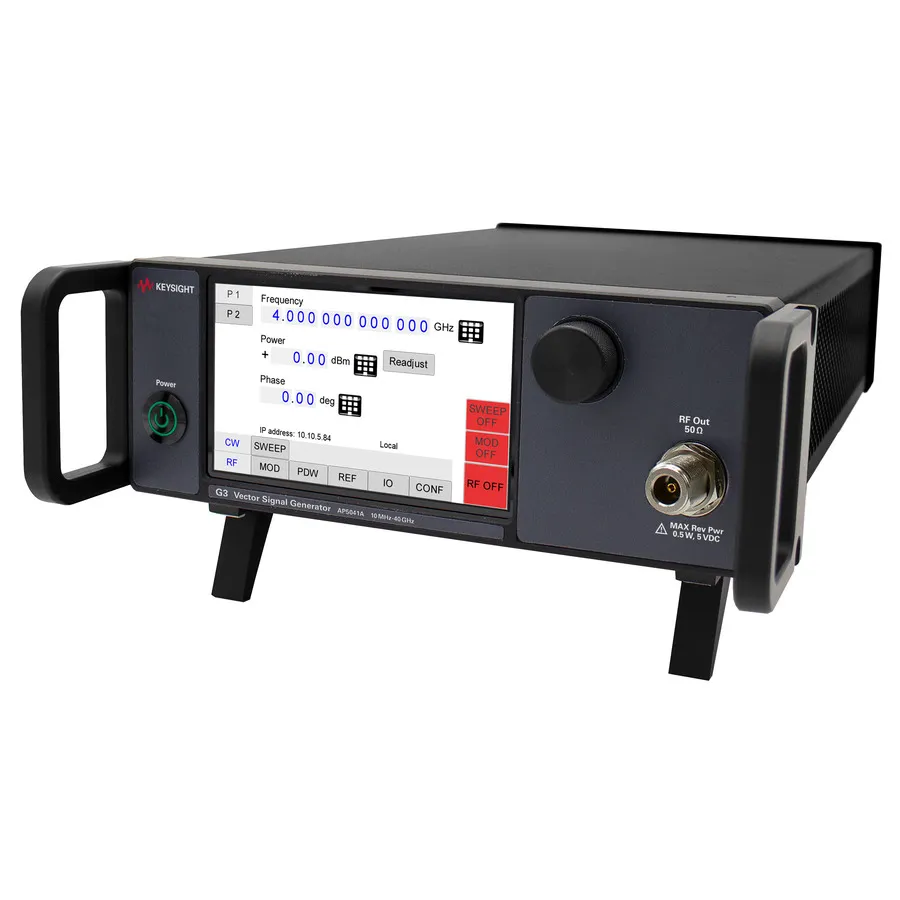

Keysight AP5041A/504/LN2 Vector Signal Generator
Keysight AP5041A/504/LN2 vector signal generator covers 100 kHz to 4 GHz with enhanced ultra-low phase noise of –150 dBc/Hz at 1 GHz and comprehensive modulation support.
Product details
| Model | AP5041A/504/LN2 |
| Manufacturer | Keysight |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Keysight AP5041A/504/LN2 is a high-performance G3 Vector Signal Generator housed in a 2U enclosure, covering 100 kHz to 4 GHz. Designed for advanced RF and microwave testing, it delivers exceptional versatility and precision for aerospace, defense, and telecommunications applications.
The instrument features a single-channel design with enhanced ultra-low phase noise down to –150 dBc/Hz at 1 GHz with a 20 kHz offset and superior long-term frequency stability. Support for a wide array of analog and digital modulation formats via an internal I/Q modulator, combined with fast frequency switching and agile hopping capabilities, makes it ideal for demanding dynamic testing environments.
Key Features
- Enhanced ultra-low phase noise: –150 dBc/Hz at 1 GHz with 20 kHz offset for exceptional signal purity
- Internal I/Q modulator supporting AM, FM, PM, Pulse, FSK, PSK, ASK, and QAM modulation
- 400 MHz modulation bandwidth for wideband and advanced modulation formats
- Fast frequency switching and hopping with CW sweeping for agile signal generation
- Type-N (f) RF output connector for standard RF interfaces
Applications
- Satellite communications and signal generation
- Radar simulation and testing
- Electronic warfare (EW) systems development
- MIMO signal generation
- Product validation and RF testing
Specifications
| Maximum Frequency | 4 GHz |
| Frequency Range | 0.5 - 4.0 |
| Series | G3 Series |
| Special Features | Enhanced Ultra Low Close in Phase Noise and Long-Term Frequency Stability |
