Keysight AP5001A/502 is a compact RF analog signal generator with 9 kHz to 2 GHz coverage, -130 dBc/Hz phase noise, and integrated USB/LAN connectivity.
Product details
| Model | AP5001A/502 |
| Manufacturer | Keysight |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview

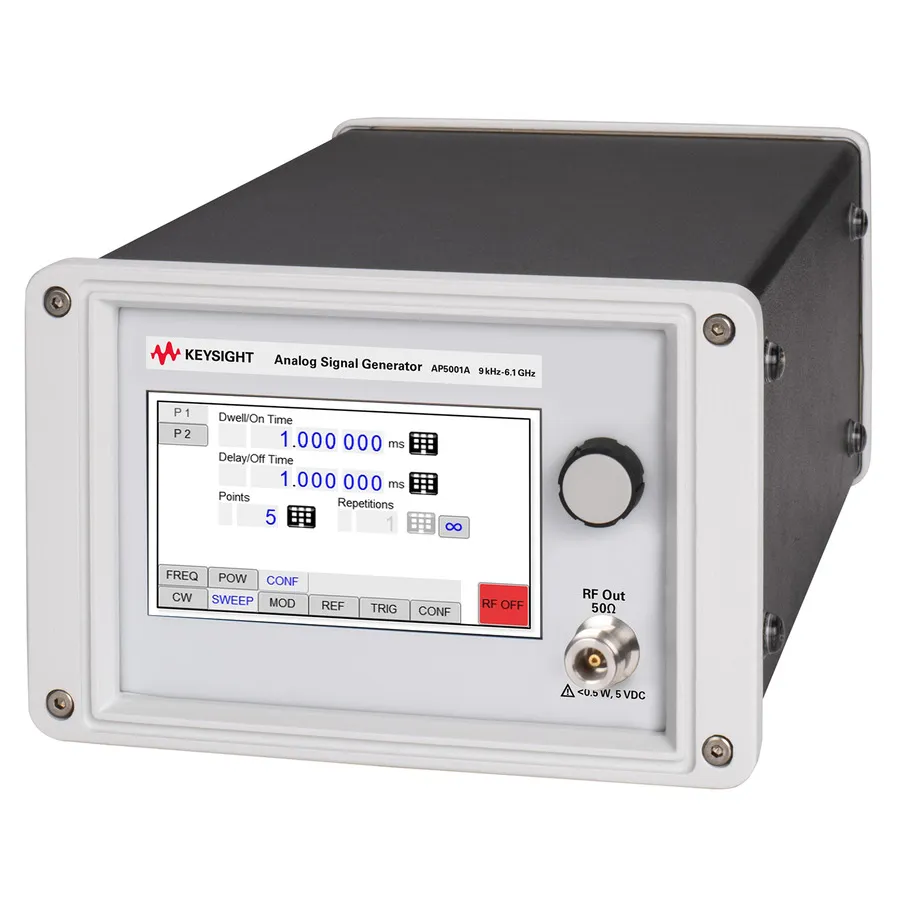

The Keysight AP5001A is a lightweight and portable RF analog signal generator designed for RF characterization. This instrument weighs under 2.5 kg and offers exceptional phase noise performance and frequency switching speed, making it ideal for amplifier testing, aerospace and defense applications, mixer testing, digital design, and consumer electronics testing.
Key Features
- Frequency range: 9 kHz to 2 GHz (AP5001A/502 option)
- Output power: -30 to +17 dBm with optional 1E1 extending to -120 dBm
- Phase noise: -130 dBc/Hz at 1 GHz, 20 kHz offset (typical)
- Harmonics: -30 dBc at 1 GHz (-40 dBc typical)
- Non-harmonics: -55 dBc at 1 GHz (-65 dBc typical)
- Frequency switching speed: 20 µs typical (200 µs standard)
- Modulation: AM, FM, PM, pulse, frequency chirps
- OCXO precision frequency reference with mHz resolution
- 4.25-inch LCD touch screen display
- Ethernet 100BaseT LAN and USB 2.0 connectivity
- SCPI-compatible command structure
- License upgradeable for extended frequency, power, and attenuator options
Applications
- RF module and device characterization
- Amplifier testing and validation
- Mixer characterization and testing
- Digital design validation
- Consumer electronics testing
- Aerospace and defense RF testing
Included Accessories
- Mains adapter (100-240 VAC input, 6V 6.0A DC output)
- 3-year Keysight warranty
- 3-year KeysightCare support
Specifications
| Maximum Frequency | 2 GHz |
| Frequency Range | 0.5 - 4.0 |
| Series | AP5000A Series |
| Wattage | 20 W |
