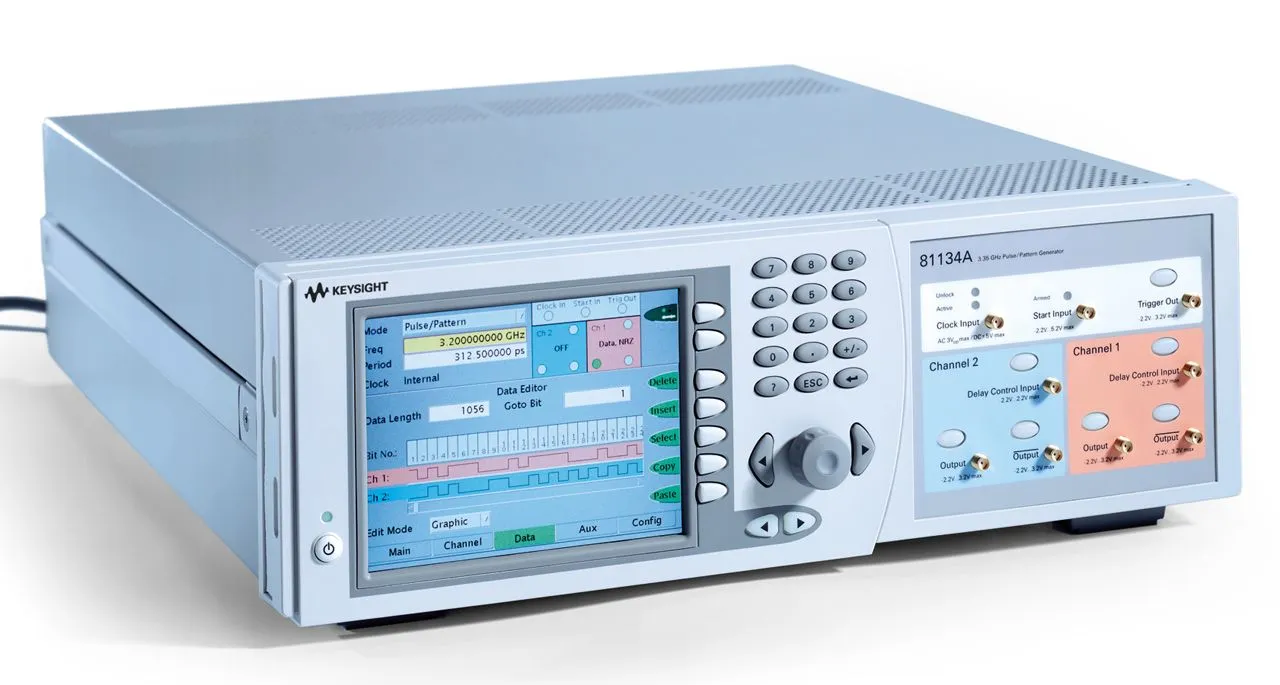

Keysight 81134A Pulse Pattern Generator

Overview

The Keysight 81134A is a 3.35 GHz dual-channel pulse/pattern generator engineered for high-speed serial bus testing where timing and performance are critical. With fast rise times below 60 ps and low intrinsic jitter, it enables precise characterization of receivers, backplanes, and other high-speed digital components. The instrument supports application-specific signal levels including pre- and de-emphasis for PCI Express and squelch for Serial ATA.

Key Features

• 3.35 GHz dual-channel operation
• Fast rise times (20%-80%): <60 ps
• Low intrinsic jitter
• 12 MBit pattern memory per channel
• Hardware-based PRBS generation
• Memory-based pattern generation
• Delay modulation for jitter emulation
• Variable cross-over point for eye deformation
• Pre-/de-emphasis levels for PCI Express
• Squelch levels for Serial ATA
• LVDS support with output levels from 50 mV to 2 V
• Graphical user interface
• Control via GPIB, LAN, and USB 2.0

Applications

• PCI Express receiver and backplane testing
• Serial ATA device characterization
• Infiniband high-speed serial validation
• Long data stream and disk drive testing
• LVDS signal generation and testing
• High-speed digital circuit characterization
