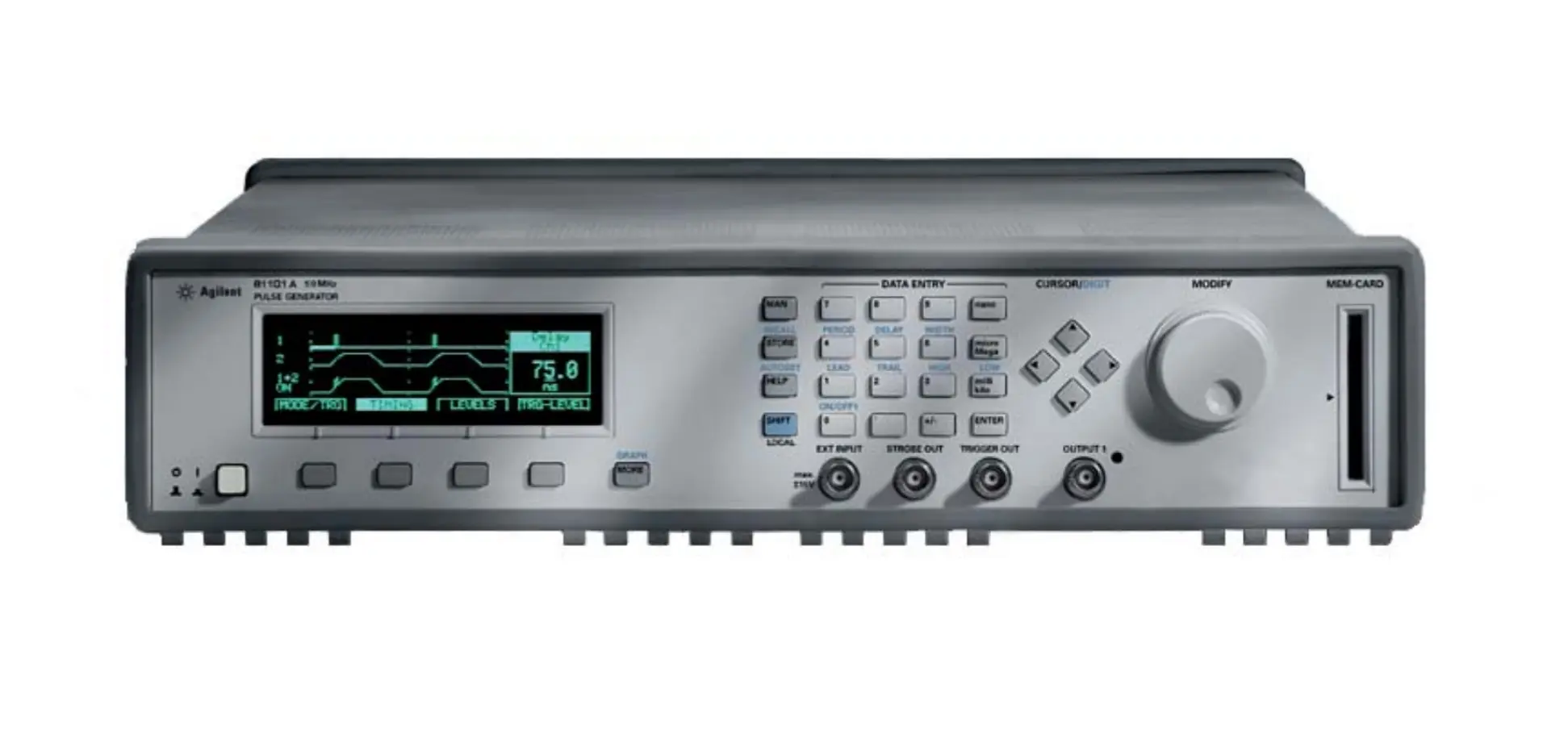

Keysight 81130A Pulse Data Generator

Overview

The Keysight 81130A is a precision pulse data generator available in single or dual-channel configurations. With optional 81131A modules, it operates at 400 MHz with 3.8 V output; with 81132A modules, it reaches 600 MHz with 2.5 V output. The instrument provides advanced delay and width accuracy through its PLL oscillator and large segmentable 64 kbit memory, supporting flexible signal generation for serial data requirements.

Key Features

• 400/600 MHz single or dual-channel operation
• Selectable pulse, burst, or pattern modes
• Precision timing with PLL oscillator
• Large 64 kbit segmentable memory per channel
• Sequenced PRBS (Pseudo-Random Bit Sequence) capability
• EXOR channel addition for complex signal synthesis
• Counted loop functionality
• Four combined independent timing eyes for arbitrary pulse shapes
• SMA(f) 3.5 mm differential outputs

Applications

• Serial data communication testing
• High-speed digital circuit characterization
• Device initialization and data communication message simulation
• Complex signal generation for telecommunications and networking
