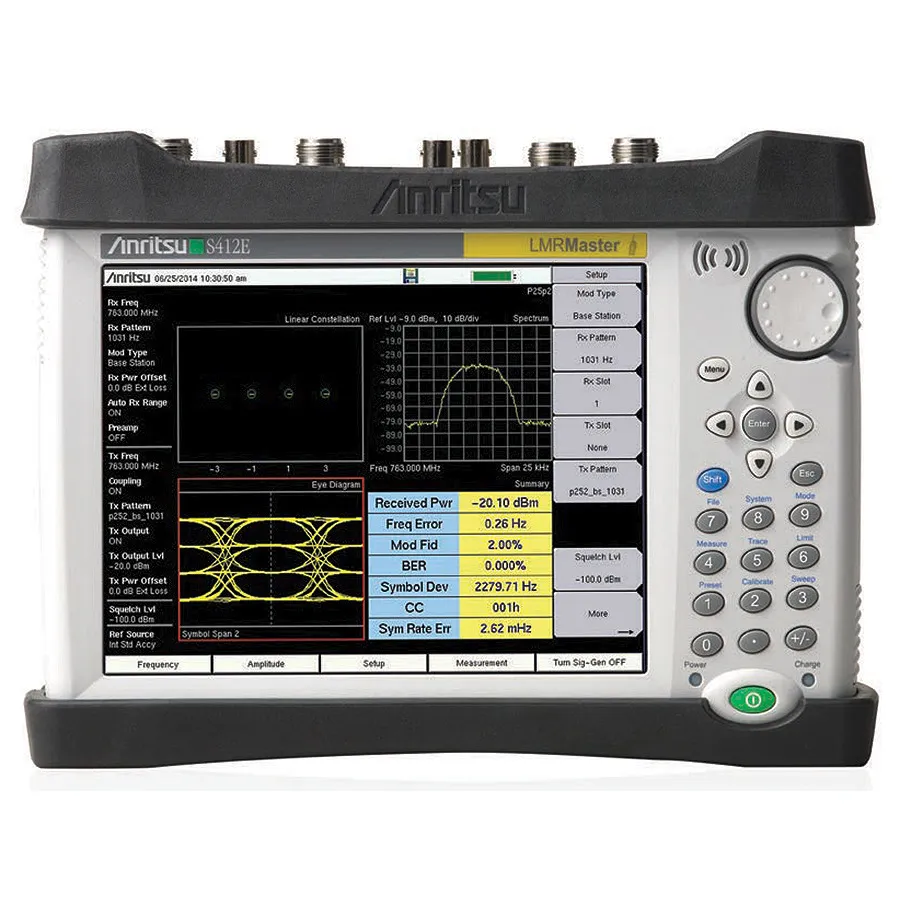

Anritsu S412E Land Mobile Radio Modulation Analyzer
Request a quote
Anritsu S412E is a handheld RF analyzer for land mobile radio with spectrum analysis to 1.6 GHz and –152 dBm noise floor.
Product details
| Model | S412E |
| Manufacturer | Anritsu |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Anritsu S412E LMR Master is a compact handheld multi-function analyzer designed for technicians and engineers installing and maintaining public safety, utility, and private mobile communications systems. It combines spectrum analysis, cable and antenna analysis, signal analysis and generation, and coverage mapping capabilities for field service applications in system commissioning, maintenance, troubleshooting, and compliance testing of mission-critical radio systems.
Key Features
- Spectrum Analyzer: 9 kHz to 1.6 GHz with –152 dBm DANL and >95 dB dynamic range
- Vector Network Analyzer: 500 kHz to 1.6 GHz with 100 dB transmission dynamic range and distance-to-fault analysis
- Signal Generator: CW/FM/AM from 500 kHz to 1.6 GHz with adjustable power from 0 dBm to –130 dBm
- NBFM Analysis: Frequency error, deviation, modulation rate, SINAD, THD, CTCSS, DCS, DTMF measurements
- Digital Signal Analysis: P25 Phase 1 & 2, NXDN, ETSI DMR, MotoTRBO, TETRA, dPMR, and LTE support
- Coverage Mapping: Indoor and outdoor RSSI and transmitter SINAD mapping (outdoor with optional GPS receiver)
- Auto Scan: Locks onto unidentified FM signals between 10 MHz and 1.6 GHz
- Handheld battery-operated design weighing less than 7.6 lbs with rechargeable 7500 mAh battery
- Daylight-viewable color touchscreen display with superior RF interference immunity
- Remote control via Ethernet connection
Applications
- Land Mobile Radio (LMR) and Professional Mobile Radio (PMR) field testing and commissioning
- Public safety and critical infrastructure radio system installation and maintenance
- Narrowband FM, P25, DMR, TETRA, NXDN system troubleshooting and compliance testing
- Railway Positive Train Control (PTC-ITCR and PTC-ACSES) systems
- Preventative maintenance and RF performance validation of mission-critical systems
Specifications
| Frequency Range | 0.5 - 4.0 GHz |
| Maximum Frequency | 1.6 GHz |
| Tracking Generator | No |
| Preamplifier | No |
| Noise Floor | -152 dBm |
| Series | LMR Master Series |
| Battery Life | 3 hrs. |
| Connector Type | N |
| Display | 8.4" LCD Touchscreen |
| Includes | Documentation Disc, User Guide, Soft Carrying Case, Master Software Tools CD Disc, Rechargeable Li-Ion Battery, AC-DC Adapter, Automotive Lighter Adapter, USB Cable |
| Interface | USB, Ethernet |
| Minimum Frequency | 9 kHz |
| Type | Handheld |
| Warranty Information | Unit: 3 Year, Battery: 1 Year |
