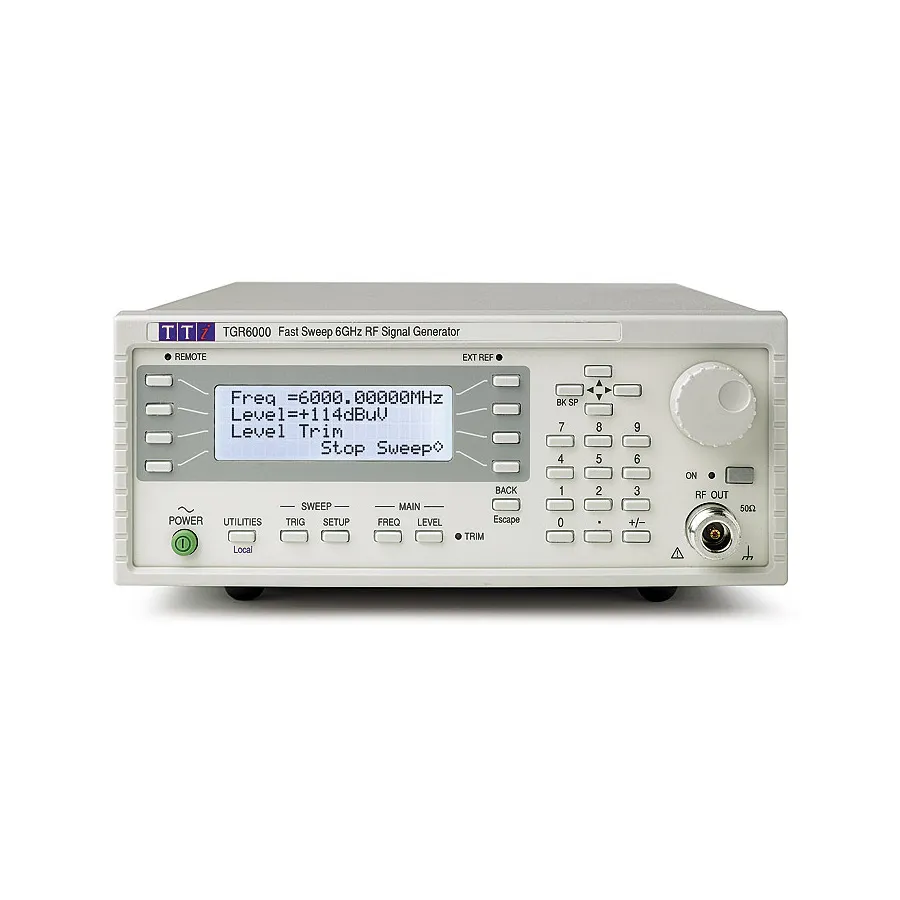

Aim-TTi TGR6000 6 GHz Synthesized Signal Generator
Request a quote
The Aim-TTi TGR6000 is a 6 GHz RF signal generator for CW applications with 10 MHz to 6 GHz range and -110 to +7 dBm amplitude.
Product details
| Model | TGR6000 |
| Manufacturer | Aim TTi |
| Category | RF & Microwave Signal Generators |
| Availability | Made to order |
Description
Overview
The Aim-TTi TGR6000 is a 6 GHz RF signal generator optimized for continuous wave (CW) applications where modulation is not required. Its compact 2U half-rack form factor minimizes bench space while delivering low phase noise, excellent frequency stability, and comprehensive sweep capabilities for laboratory and production test environments.
Key Features
- Frequency range from 10 MHz to 6000 MHz with 10 Hz setability
- ±1 ppm frequency stability with internal timebase; external reference locking available
- Amplitude range of -110 dBm to +7 dBm with 0.1 dB steps
- Low phase noise, low leakage, and low residual FM
- Step sweep and list sweep modes (up to 1000 points)
- User compensation tables for test set-up optimization
- Storage for 12 instrument setups and 16 sweep lists
- GPIB, RS-232, LAN, and USB connectivity for remote control
Applications
- CW signal generation for RF testing
- Component and subsystem characterization
- Production test environments
- Laboratory measurement and validation
Specifications
| Maximum Frequency | 6 GHz |
| Frequency Range | 4.0 - 8.0 |
