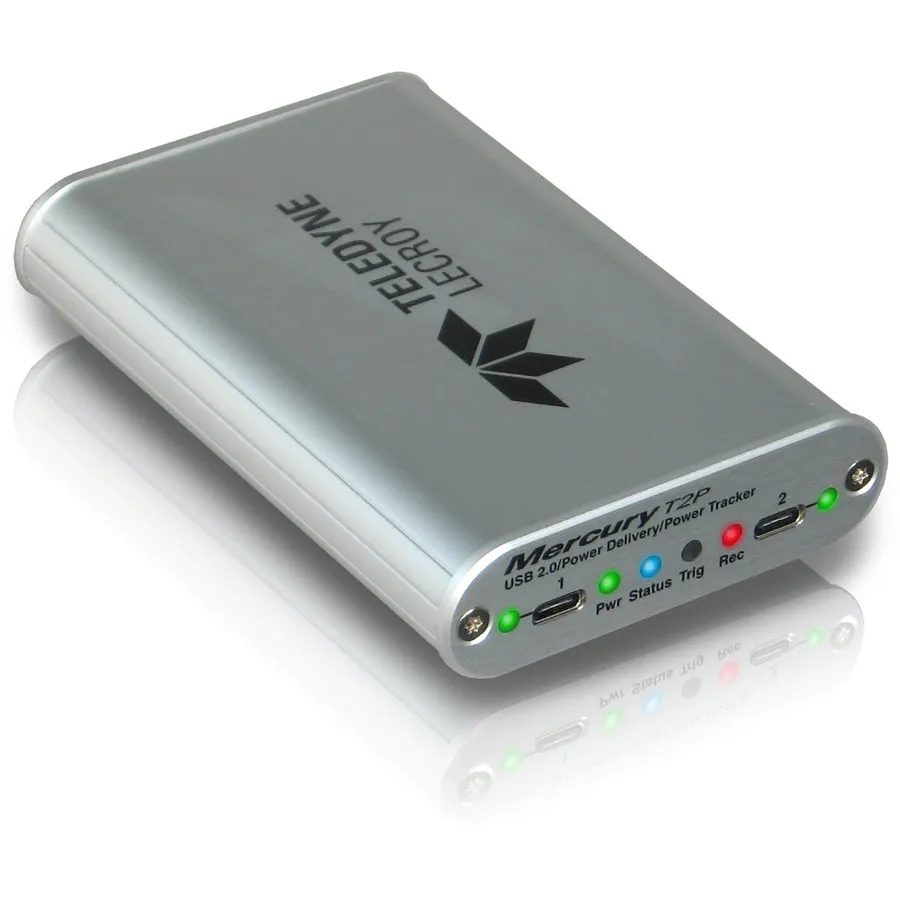

Teledyne LeCroy USB-TMS2-M02-X Protocol Analyzer
Request a quote
Teledyne LeCroy USB-TMS2-M02-X is a portable USB 2.0 and Type-C protocol analyzer with 256 MB memory and CATC Trace analysis software.
Product details
| Model | USB-TMS2-M02-X |
| Manufacturer | Teledyne LeCroy |
| Category | Protocol Analyzers |
| Availability | Made to order |
Description
Overview
The Teledyne LeCroy USB-TMS2-M02-X Mercury T2C is a portable USB 2.0 and Type-C protocol analyzer combining advanced hardware capture with the industry-standard CATC Trace analysis software. It captures a wide range of USB 2.0 device classes and Type-C link states for comprehensive protocol debugging and verification.
Key Features
- USB 2.0 protocol capture at all speeds (LS, FS, HS) over Type-A, Type-B, and Type-C connectors
- Compact bus-powered design weighing under 8 oz.
- 256 MB recording memory with spool-to-disk recording
- High-impedance probe preserves real-world signal and timing conditions
- Extensive protocol decodes: Mass storage, Bluetooth HCI, Hub, PTP/Still Image, Printer, HID, Audio, Video, Communication, and more
Applications
- USB Type-C device development and testing
- Multi-device USB protocol analysis
- Embedded USB integration and debugging
Specifications
| Series | Mercury T2 Series |
