Protocol Analyzers

Protocol analyzers are specialized test instruments used to capture, decode, and analyze data traffic on communication buses and serial interfaces. Unlike general-purpose oscilloscopes, protocol analyzers understand the specific structure of communication protocols — including packet framing, addressing, handshaking, and error conditions — enabling engineers to verify correct device behavior, diagnose interoperability issues, and debug communication failures at the protocol layer. They are essential tools during development and validation of embedded systems, peripherals, and communication devices across consumer electronics, industrial automation, automotive, and telecommunications industries.

Protocol analyzers are available for a wide variety of interface standards, from legacy serial protocols such as RS-232, RS-422, and RS-485 to high-speed modern buses including USB 3.0, PCIe, Bluetooth Low Energy, and I2C/SPI. Hardware-based analyzers capture traffic non-intrusively in real time with deep trace buffers, while software decoders integrated into oscilloscopes offer a more accessible option for simpler protocols. For complex, high-speed interfaces such as USB SuperSpeed or PCIe Gen 3/4, dedicated hardware protocol analyzers provide the timing precision, protocol compliance checking, and buffer depth necessary for thorough validation.

Typical Applications

USB development and compliance testing — capturing enumeration sequences, transfer protocols, and USB Power Delivery (PD) negotiation for certification
Bluetooth and Bluetooth Low Energy (BLE) protocol debugging for IoT, wearable, and consumer electronics product development
RS-232, RS-422, and RS-485 serial communication analysis for industrial automation, process control, and legacy system integration
Embedded firmware debugging by monitoring inter-chip communication on I2C, SPI, UART, and CAN buses
Interoperability and compliance testing for communication devices in automotive (LIN, CAN, FlexRay) and telecommunications applications

Popular Brands

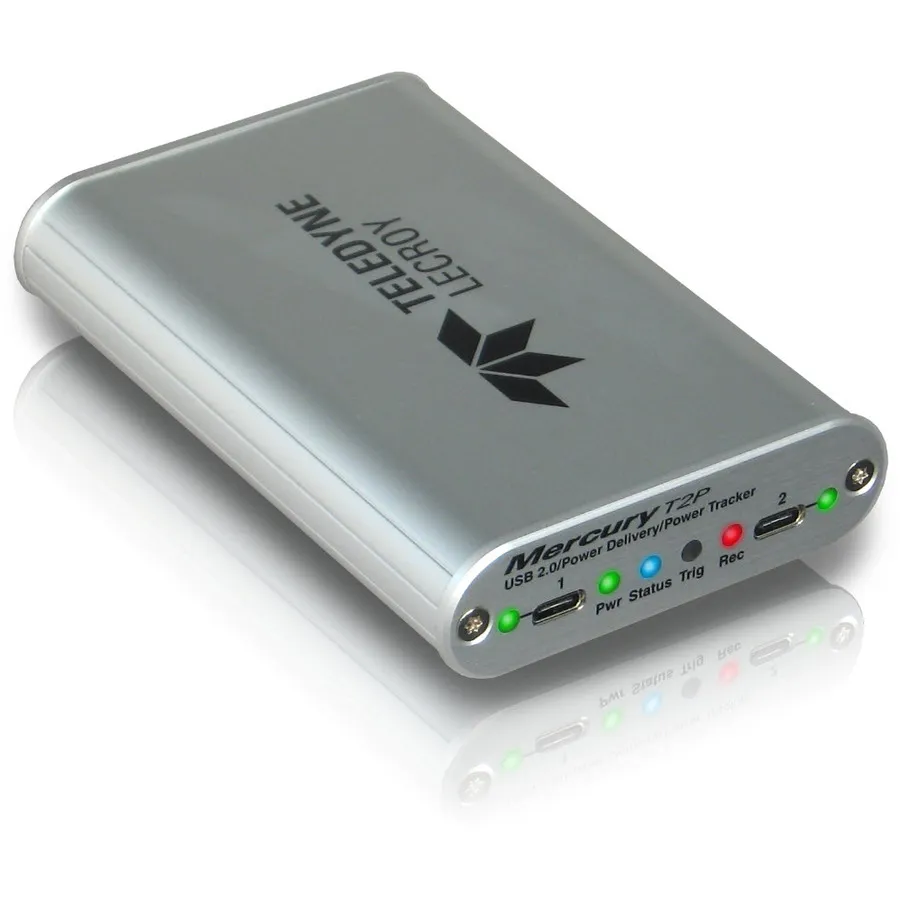

Teledyne LeCroy is the leading provider of protocol analyzers, offering comprehensive solutions for USB (including USB 3.0 and USB Power Delivery), Bluetooth, PCIe, and serial interfaces through their Voyager, Advisor T3, Mercury T2, and NetDecoder product lines. Their analyzers are widely used in consumer electronics, automotive, and telecommunications development environments where rigorous protocol-layer verification is required.
