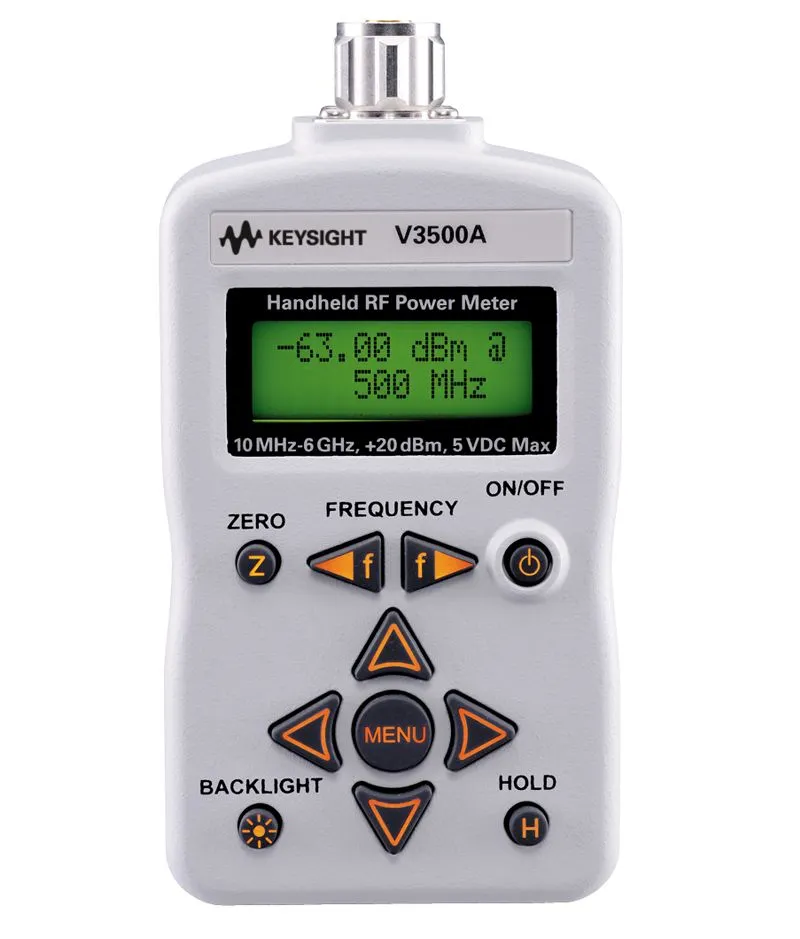

Keysight V3500A Handheld RF Power Meter

Overview

The Keysight V3500A is a compact, handheld RF power meter designed for accurate power measurements in field and manufacturing applications. With an absolute accuracy of ±0.21 dB, a frequency range of 10 MHz to 6 GHz, and a measurement range of −63 dBm to +20 dBm, the V3500A is suitable for diverse RF measurement applications. Its integrated power sensor eliminates the need to carry separate instrument and sensor components.

Key Features

• Compact, handheld form factor for portable field use
• Frequency range: 10 MHz to 6 GHz
• Measurement range: −63 dBm to +20 dBm
• Absolute accuracy: ±0.21 dB
• Integrated power sensor eliminates need for separate sensor module
• Wide dynamic range (83 dB) for diverse measurement applications
• Multiple power options: batteries, AC-DC converter, or USB interface
• Internal power reference for self-calibration capability

Applications

• Field RF power measurements and verification
• Manufacturing test and quality assurance
• Transmitter output power monitoring
• Signal path verification in wireless systems

Included Accessories

• Optional belt loop holster for portable carry
• Optional carrying case with shoulder strap
