Fluke Networks OFP2-100-SI Singlemode OTDR with Inspection
Request a quote
OptiFiber Pro Singlemode OTDR with integrated fiber inspection video probe, SmartLoop automated testing, advanced event detection, and Wi-Fi for long-distance fiber network certification.
Product details
| Model | OFP2-100-SI |
| Manufacturer | Fluke Networks |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The OptiFiber Pro OFP2-100-SI is a professional Singlemode OTDR with integrated fiber inspection capabilities, designed for comprehensive testing in outside plant (OSP), long-distance FTTx, and enterprise network environments. This complete certification solution combines singlemode fiber testing with video endface inspection and Wi-Fi connectivity through the Versiv platform and LinkWare Live software.
Key Features
- Singlemode fiber testing at 1310, 1550, and 1625 nm wavelengths for comprehensive long-distance analysis
- SmartLoop OTDR technology enables automated two-fiber testing in a single pass with instantaneous bi-directional results
- EventMap automatically analyzes traces and identifies splices, splitters, connectors, and bends with precision
- Taptive gesture-based touchscreen interface with pinch-and-zoom for advanced trace examination
- Extremely short attenuation dead zone (3.6 m typical for singlemode) for accurate measurement near connection points
- Expert Manual Mode for detailed investigation and fine adjustment of OTDR parameters
- Integrated USB Fiber Inspection Video Probe with 4 tips for endface certification and cleaning verification
- Splitter detection identifies up to 3 cascaded splitters automatically or via manual configuration
- Macrobend detection for automatic identification of fiber bends and mechanical issues
- Built-in Visual Fault Locator (VFL) for rapid damaged fiber identification
- Wi-Fi enabled for LinkWare Live integration and remote job collaboration
- Batch processing for efficient analysis of multiple singlemode fiber runs
Applications
- Long-distance fiber network installation, commissioning, and certification
- Outside plant (OSP) fiber link deployment and troubleshooting
- Extended FTTx broadband network testing and documentation
- Enterprise backbone and long-haul fiber certification
- Submarine and transoceanic fiber link analysis
- Field fiber endface inspection and quality assurance
- Comprehensive fiber network documentation and reporting

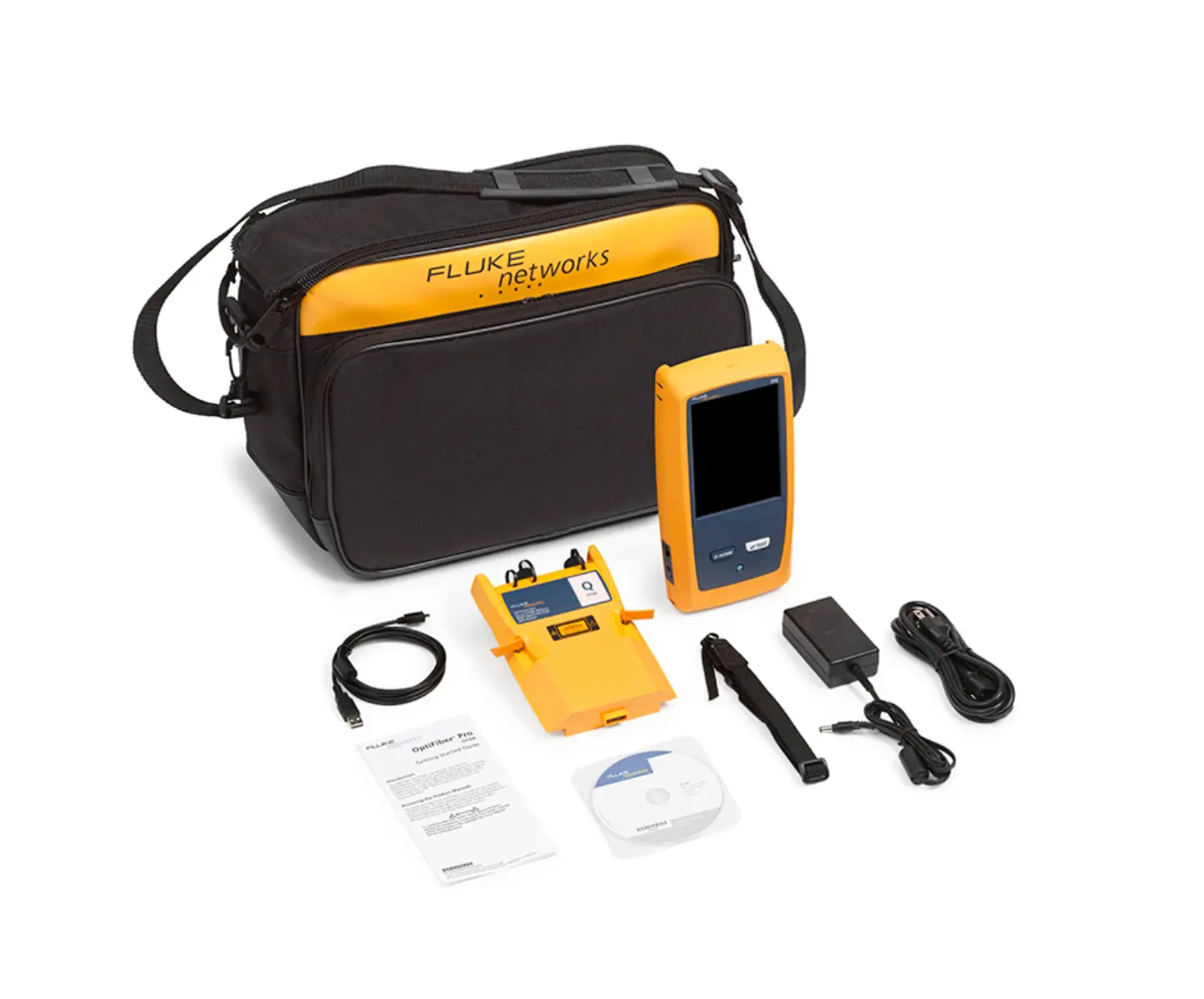

Included Accessories
- Versiv 2 Mainframe
- OptiFiber Pro Singlemode OTDR module
- USB Fiber Inspection Video Probe with 4 interchangeable tips
- Quick Clean Cleaners for 1.25 mm and 2.50 mm connectors
- SC/LC Singlemode Launch Cables (9 µm)
- Interchangeable LC adapters for OTDR source port
- SC/SC Simplex Adaptor
- Launch Fiber Hanging straps and magnets
- Shoulder Strap and protective Carry Case
- USB Interface Cable and AC Power Charger
- Integrated Wi-Fi
- Statement of Calibration and Getting Started Guides
Specifications
| Smartphone User Interface | Most OTDRs are designed for a myriad of applications, causing the user interface to be difficult to navigate and interpret. OptiFiber Pro combines the latest “gesture-based” interface technology with a capacitive touchscreen to deliver the most innovative and user-friendly OTDR. Advantages: Single-touch tap and swipe control for selecting and scrolling menu items. Multi-touch pinch to zoom for easy magnification control on a graphical fiber trace. Task-focused design to reduce back and forth navigation through screens. Capacitive touchscreen eliminates the need to recalibrate unlike legacy touchscreens. Context sensitive on-screen help that gives users additional details or problem resolution suggestions |
| At Home in the Datacenter | Driven by server virtualization and multi-gigabit links between servers, networks and storage, the datacenter architecture employs more patch cords and dense topology connectors, rendering carrier-class OTDRs with long dead zones ineffective. OptiFiber Pro not only makes fiber deployment in datacenters possible, but provides the highest level of accuracy for quick problem resolution. With a simple one-touch selection, users enter DataCenter OTDR mode - without setup time for fine-tuning as needed in legacy OTDRs. DataCenter OTDR mode automatically detects OTDR parameters - end-detection algorithms, pulse widths, etc - without getting confused by the short links or number of connectors. Advantages: Ultra-short event and attenuation dead-zones precisely locates events and faults on fiber links in the Enterprise. DataCenter OTDR™ mode automatically sets the configuration to quickly test datacenter fiber. The EventMap feature depicts fiber events in a way that requires no trace analysis expertise. |
| Unique Certification with Flexibility and Efficiency | An important aspect in maximizing an OTDR’s value is to properly plan its day-to-day usage. With built-in project management, OptiFiber Pro allows a project manager to define each user’s role, settings and the associated tasks to be performed – transforming the OTDR into an all-in-one fiber testing tool complete with planning, inspection, certification and reporting. OptiFiber Pro enhances job efficiency by allowing the workflow planner to create and manage operator and job profiles per project - defined jobs or sets of cable IDs can be assigned to specific operators. The progress and status of each project can also be easily monitored. Advantages: Full OTDR capability that certifies fiber performance based on job assignment for each operator. Powerful project management facilitates OTDR sharing with clear job assignment for each operator. Easy monitoring of job progress with pass/fail results. On-screen report generation and upload to LinkWare™ application. |
| Other Key Features | Extremely short event and attenuation dead zone for the Enterprise The OptiFiber Pro leverages the most sophisticated optical technology to provide the shortest event dead zone (0.5 m typical for MM) and attenuation dead zone (2.2 m typical for MM and 3.6 m typical for SM) of any OTDR. This technological advancement allows OptiFiber Pro to detect and measure closely spaced faults where no other OTDR can in today’s connector-rich datacenter and storage area environments. |
| OFP2-100-SI | OptiFiber Pro Singlemode OTDR V2 kit with inspection and Wi-Fi. This kit includes: (1) Versiv 2 Mainframe, (1) OptiFiber Pro Singlemode OTDR module, Shoulder Strap, USB Interface Cable, Carry Case, AC Charger, (2) Quick Clean Cleaners (1.25/2.50 mm), (2) SC/LC Singlemode Launch Cables—50 µm, (1) OTDR source port interchangeable LC adapters, USB Fiber Inspection Video Probe with 4 Tips, SC/SC Simplex Adaptor, (2) Launch Fiber Hanging straps and magnets, Integrated Wi-Fi, Statement of Calibration and Getting Started Guides |
