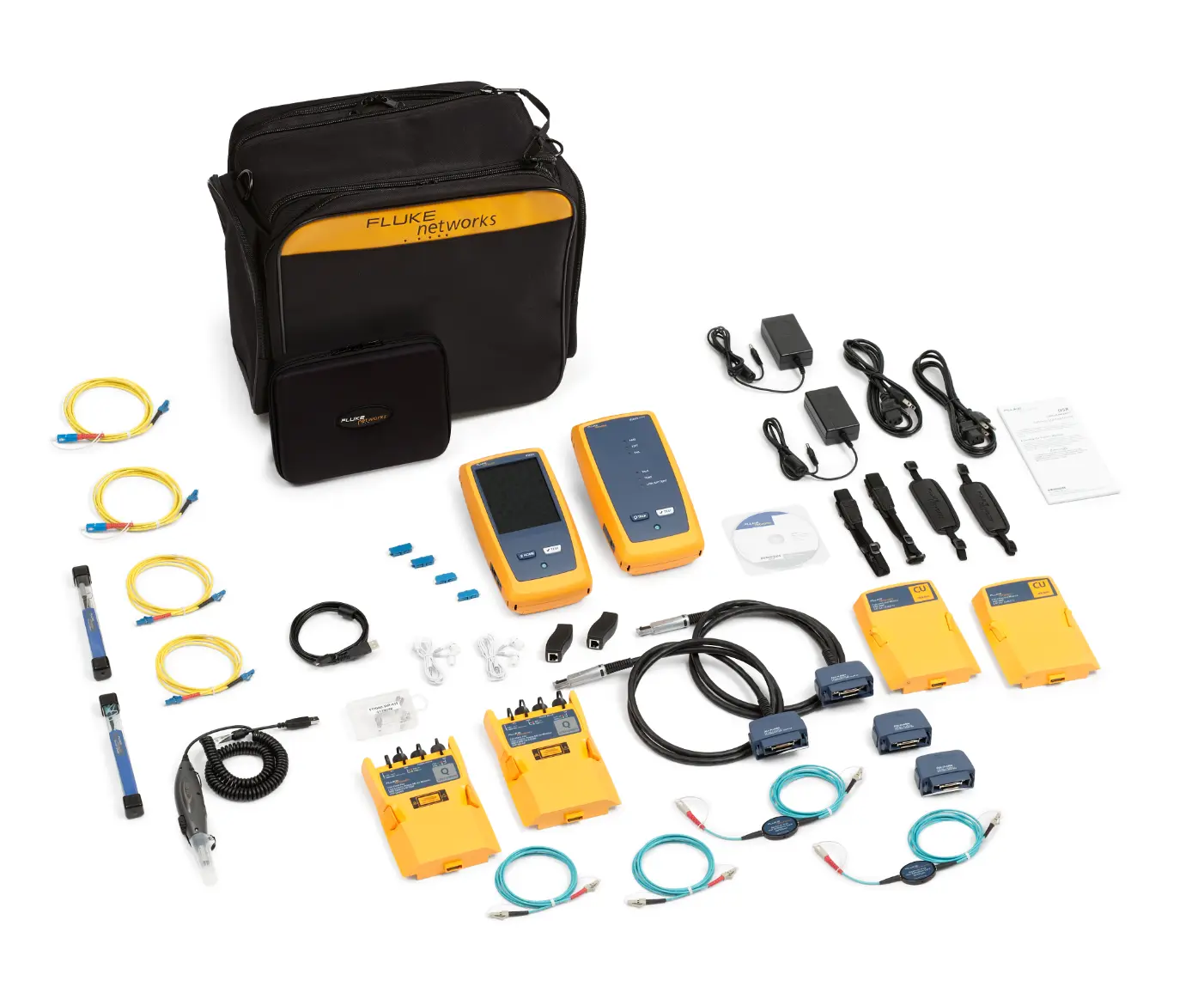

Fluke Networks DSX-5000Qi Cable Analyzer with Quad OLTS
Request a quote
Fluke Networks DSX-5000Qi is a cable analyzer with Quad OLTS for multimode and singlemode fiber, providing Level V copper certification to 1200 MHz with integrated fiber inspection.
Product details
| Model | DSX-5000QI 120 |
| Manufacturer | Fluke Networks |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The Fluke Networks DSX-5000Qi is an advanced cable analyzer combining copper certification with Quad OLTS supporting both multimode and singlemode fiber, and integrated fiber inspection. This comprehensive system enables testing and certification of complete cabling systems from Cat 5e through Class FA copper to singlemode and multimode fiber, with IEC Level V accuracy extending to 1200 MHz.
Key Features
- Versiv family with ProjX management system for automated, correct-first-time certification
- Taptive interface provides advanced data analysis and easy operation for all skill levels
- LinkWare management software for comprehensive test analysis and professional reporting
- Dedicated Diagnostics reduces troubleshooting time by identifying problem sources
- Graphically displays failure sources including crosstalk and distance to faults
- Quad OLTS for testing both multimode and singlemode fiber
- Integrated fiber inspection capability
- Level V accuracy exceeds IEC specification with minimal crosstalk margin
- 10-second Cat 6 test time for rapid copper certification
- Manages 12,000 test results with full graphics
Applications
- Comprehensive copper and fiber cabling system certification
- Multimode and singlemode fiber optic testing
- Cat 5e, 6, 6A, and Class FA copper cable certification
- 10 Gigabit Ethernet deployment verification
- Alien crosstalk link-to-link certification for Cat 6A and higher
- Data center and enterprise infrastructure cabling validation
Specifications
| Maximum Frequency | 1200 MHz |
| Accuracy Class | IEC Level V |
| Cat 6 Test Time | 10 seconds |
| Supported Copper Types | Cat 5e, 6, 6A, Class C, D, E, Ea, F, FA |
| Fiber Capability | Quad OLTS (Multimode and Singlemode) |
| Test Result Capacity | 12,000 results |
| Fiber Inspection | Integrated |
| Interface | Capacitive touchscreen |
| Standards Compliance | TIA 568-C.2, ISO/IEC 11801:2002, IEEE 802.3 |
| Technology Platform | Versiv with ProjX and Taptive |
