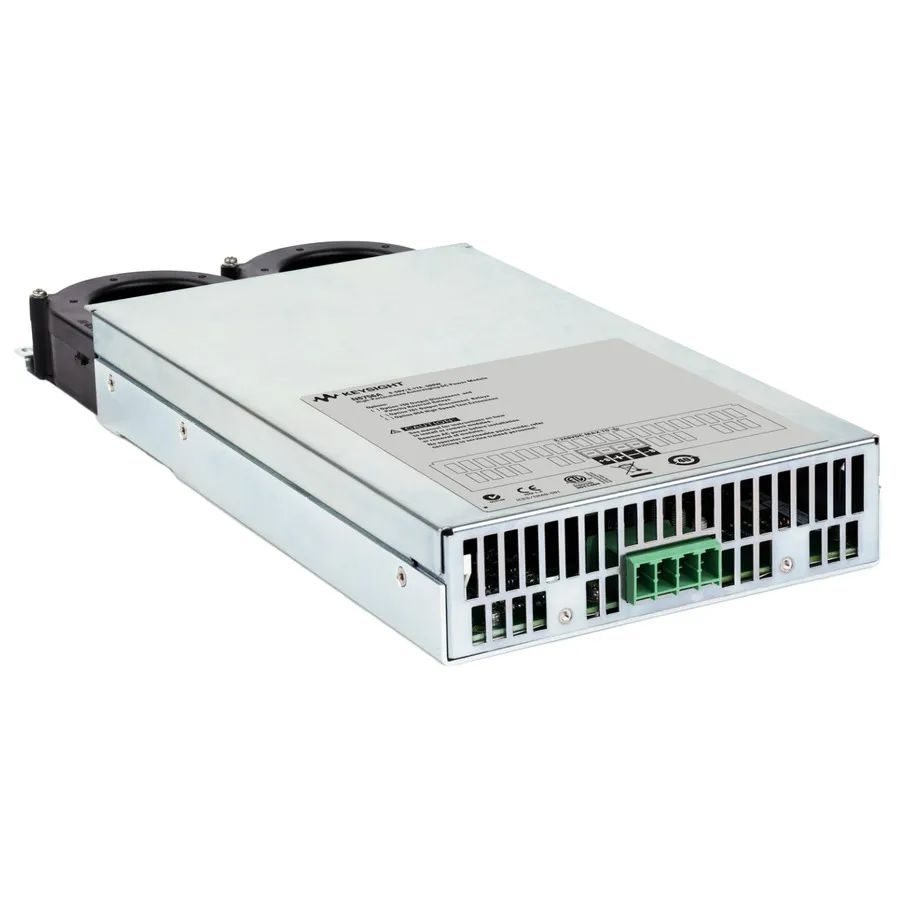

Keysight N6756A/761 DC Power Module

Overview

The Keysight N6756A/761 is a 500 W high-performance, autoranging DC power module designed for automated test equipment and bench testing applications. It provides 0 to 60 V and 0 to 17 A output with exceptional programming accuracy and low noise performance. The double-wide form factor accommodates the high power requirements while maintaining compact mainframe integration.

Key Features

• Voltage range: 0 to 60 V
• Current range: 0 to 17 A (500 W maximum power)
• Voltage programming accuracy: 0.06% + 25 mV
• Current measurement accuracy: 0.1% + 15 mA
• Constant voltage ripple and noise: 6 mV rms, 1 mV peak-to-peak
• Constant current ripple and noise: 4 mA rms
• Output disconnect relay for safe test operation
• Double-wide module format for mainframe slot configuration
• Programmable via GPIB, LAN, USB, and LXI interfaces

Applications

• Automated test equipment (ATE) systems using N6700 or N6705 mainframes
• High-power testing and characterization
• Device-under-test (DUT) validation and burn-in testing
